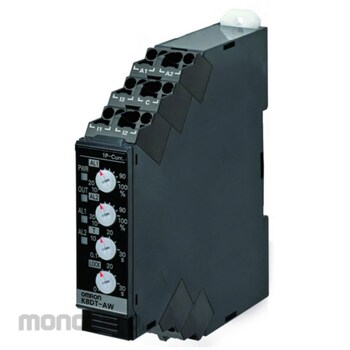

OMRON Single Phase Over/Under Current Relay K8DT-AW
#Grup produk P112445896
Spesifikasi
| Altitude (m) | 2000 or less |
|---|---|
| Ambient Humidity to Use (%RH) | 25 to 85 (with no condensation) |
| Applicable Standard | EN 60947-5-1 Installation environment: Pollution degree 2, Overvoltage category III |
| Case Material | PC UL94-V0 |
| Current Capacity (A) | 10 (per 1 pole) |
| EMC Standard to Conform | EN 60947-5-1 |
| Exterior Color | (Case) N1.5 |
| Frequency Fluctuation Range (Hz) | 50/60±5 |
| Insulation Resistance (MΩ) | 20 or more Between all external terminals and the case Between all power supply terminals and all input terminals Between all power supply terminals and all output terminals Between all input terminals and all output terminals |
| LED Color | PWR: Green, OUT: Yellow, AL1: Red, AL2: Red |
| Noise resistance | Rising 1 ns square wave Positive/Negative Pulse width 1 μs/100 ns AC100-240V: 1500V power terminal common/normal AC24V: 1500V power terminal common/normal DC24V: 480V power terminal common |
| Operating Time | (Setting range) 0.1 to 30 seconds |
| Outer Dimensions (WxHxD) (mm) | 17.5x90x90 |
| Protection Class | Terminal: IP20 |
| Rated Insulation Voltage (V) | AC600 |
| Return Function | Manual return / automatic return (switching) * Manual return method: Turn the power OFF for 1 second or longer. |
| Storage Temperature (°C) | -25 to +65 (with no condensation or icing) |
| Suitable For | (Wire type) Stranded wire, solid wire, ferrule terminal (cross-sectional area) 0.25 to 1.5 mm² (AWG24 to 16) |
| Type of Sign | DIN rail mounting, screw mounting |
| Width (mm) | 17.5 |
| Withstand Voltage | 2000VAC for 1 minute Between external terminals and case Between power supply terminals and input terminals Between power supply terminals and output terminals Between input terminals and output terminals |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Feature
17.5mm width.UL-Listed compatible for easy shipping to North America.
Added transistor output.
Push-in Plus terminal type.
