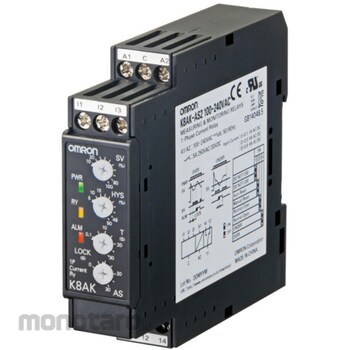

OMRON Single Phase Current Relay K8AK-AS
#Grup produk P112445850
Sebelum PPN:
Rp2.399.900 - Rp2.499.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Altitude (m) | 2000 or less |
|---|---|
| Ambient Humidity to Use (%RH) | Relative humidity: 25 to 85 (no condensation) |
| Applicable Standard | EN60947-5-1, Installation environment (Pollution degree 2, Installation category III), EN60947-5-1, UL508 (Recognition), Korea Radio Act (Act No. 10564), CSA C22.2 No.14, CCC: GB14048.5 |
| Case Color | N1.5 |
| Case Material | PC+ABS UL94-V0 |
| Display LED | PWR: Green, RY: Yellow, ALM: Red |
| Frequency Tolerance | 50/60Hz±5Hz |
| Insulation Resistance (MΩ) | over 20 |
| Mounting | DIN rail mounting |
| Noise resistance | 1500V power supply terminal common / normal, rising 1ns square wave positive / negative pulse width 1μs / 100ns |
| Operating Time | Setting range: 0.1 to 30 seconds |
| Operating Voltage Range | 85 to 110% of rated power supply voltage |
| Operation Mode | 1c contact output (normally open / normally closed DIP switch switching) |
| Outer Dimensions (WxDxH) (mm) | 22.5x100x90 |
| Output | 1c relay output |
| Protection Class | Terminal: IP20 |
| Return Function | Manual return / automatic return (switching) |
| Shock Resistance (m/s²) | 100, 3 axes 6 directions 3 times |
| Storage Humidity Range (%RH) | Relative humidity 25-85 (with no condensation) |
| Storage Temperature Range (°C) | -20 to 65 (but no freezing or condensation) |
| Vibration Resistance (Hz) | Frequency: 10 to 55, Acceleration: 50m/s² , X, Y, Z directions: 5min x 10 sweeps |
