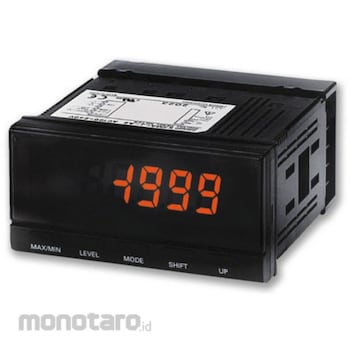

OMRON Rotation/Speed/Flow Indicator/Indicator Alarm K3MA-F
#Grup produk P112445018
Sebelum PPN:
Rp5.399.900 - Rp6.199.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Ambient Humidity to Use (%RH) | 25 to 85 (with no condensation) |
|---|---|
| Applicable Standard | UL3121-1, EN61010-1 (IEC61010-1): Pollution degree 2 / Overvoltage category II |
| Character Height (mm) | 14.2 |
| Digit Number of Display | 5-digit |
| Display | Zero: Zero digit suppression |
| Display Range | -19999~99999 |
| Input Method | Rotation pulse (non-voltage contact/NPN/PNP/voltage pulse) |
| Insulation Resistance (MΩ) | 20 or more (at 500 VDC) ; Between all external terminals and case, between input-output-power supply |
| Measuring Accuracy | ± 0.1% FS ± 1 digit or less (at 23 ± 5°C) |
| Method | Measurement: Period measurement method |
| Noise resistance | Power supply terminal normal / common mode ± 1500V ; Rising 1ns square wave ± 1μs, 100ns |
| Number of Digits | 5 digits (-19999 to 99999) |
| Power Consumption (VA) | At maximum load: 6 or less |
| Power Input (V) | AC100~240 (50/60Hz) |
| Power Supply Voltage (V) | AC100~240 |
| Protection Class | Front: NEMA4X indoor compliant (equivalent to IP66), rear case: IP20, terminal part: IP00 + finger protection (VDE0106/100) |
| Protective Function | Memory: Non-volatile memory (number of writes 100,000 times) |
| Response Time | Comparative output: 750 ms or less |
| Storage Temperature Range (°C) | -25 to +65 (with no condensation or icing) |
| Suitable Sensor | Residual voltage when on: 2.5 V or less Leakage current when off: 0.1 mA or less Load current: Have a switching capacity of 15 mA or more. A load current of 5 mA or less can be reliably opened and closed. |
| Type of Display | 7-segment digital display |
| Type of Input | Rotation pulse |
| Type of Sign | Panel mounting |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Feature
Achieves high visibility with a negative LCD display with a 2-color LED (red / green) backlightUlasan Produk
