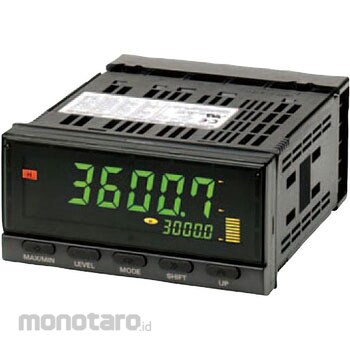

OMRON Rotation Pulse Meter K3HB-R
#Grup produk P112444994
Sebelum PPN:
Rp5.799.900 - Rp7.499.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Altitude (m) | 2000 or less |
|---|---|
| Ambient Humidity to Use (%RH) | 25~85 |
| Applicable Standard | UL61010-1, CSA C22.2 No.1010.1 (Evaluated by UL), EN61010-1 (IEC61010-1) Pollution degree 2/Overvoltage category II EN61326: 1997, A1: 1998, A2: 2001 |
| Character Height (mm) | PV: 14.2 (green/red switching), SV: 4.9 (green) |
| Digit Number of Display | 5-digit |
| Display Range | -19999~99999 |
| Included Accessories | Waterproof packing, 2 fixtures, terminal cover, unit seal, instruction manual |
| Input Method | Pulse (NPN/Voltage Pulse) |
| Input Signal | 30Hz max. ON / OFF pulse width 15ms or more |
| Insulation Resistance (MΩ) | 20 or more (at 500 VDC) |
| Measurement Range | Function F1 to F6: 0.5mHz to 50kHz (when the sensor is voltage pulse/open collector type) |
| Measuring Accuracy | (at23±5°C) Function F1, F6: ±0.006%rdg±1 digit (when the sensor is voltage pulse/open collector type) Function F2 to F5: ±0.02%rdg±1 digit (sensor is voltage pulse/open collector type) time of type) |
| Noise resistance | Power supply terminal normal / common mode ± 1500V (square wave of rising 1ns, pulse width 1μs, 100ns) |
| Number of Digits | 5 digits (-19999 to 99999) |
| Power Consumption (VA) | 18 or less |
| Power Input (V) | AC100~240 (50/60Hz) |
| Power Supply Voltage (V) | AC100~240 |
| Protection Class | Front: NEMA4X indoor compliant (equivalent to IP66), rear case: IP20, terminal part: IP00 + finger protection (VDE0106/100) |
| Protective Function | Memory / EEPROM (nonvolatile memory), number of writes: 100,000 times |
| Storage Temperature Range (°C) | -25 to +65°C (with no icing or condensation) |
| Suitable Sensor | Residual voltage when ON: 3 V or less Leakage current when OFF: 1.5 mA or less |
| Type of Display | Negative type LCD (backlight LED) display, 7-segment digital display |
| Type of Input | NPN/voltage pulse |
| Type of Sign | Panel mounting |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Warning
* DC power supply types require a control power capacity of approximately 1A per unit when powered on. Please be especially careful when using multiple units. * BCD output type requires a dedicated BCD output cable (sold separately).Feature
50kHz high-speed pulse measurement Supports six types of measurement operations, including rotation/speed and ratioUlasan Produk
