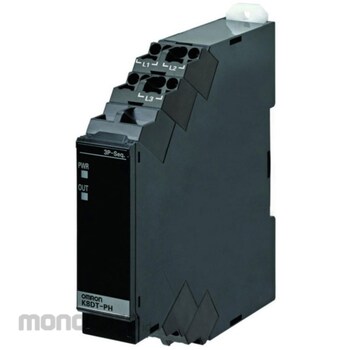

OMRON Reversed Phase Open Phase Relay K8DT-PH
#Grup produk P112444879
Spesifikasi
| Altitude (m) | 2000 or less |
|---|---|
| Ambient Humidity to Use (%RH) | 25 to 85 (with no condensation) |
| Applicable Standard | EN 60947-5-1 Installation environment: Pollution degree 2, Overvoltage category III |
| Case Material | PC UL94-V0 |
| Current Capacity (A) | 10 (per 1 pole) |
| EMC Standard to Conform | EN 60947-5-1 |
| Exterior Color | (Case) N1.5 |
| Function | Reverse phase + open phase monitoring |
| Input Frequency (Hz) | 50/60 |
| Insulation Resistance (MΩ) | 20 or more Between all external terminals and the case Between all input terminals and all output terminals |
| LED Color | PWR: Green, OUT: Yellow |
| Noise resistance | Rise 1ns square wave positive/negative Pulse width 1μs/100ns 1500V input terminal common/normal |
| Operating Time | Reverse phase / 0.1 seconds ± 0.05 seconds, open phase / 0.1 seconds or less (when sudden change from rated voltage 100% to 0%) |
| Outer Dimensions (WxHxD) (mm) | 17.5x90x90 |
| Overload Withstand | 528V continuous |
| Power Input (V) | Three-phase, three-wire: AC200 to 480 |
| Protection Class | Terminal: IP20 |
| Rated Impulse Withstand Voltage (kV) | 6 (between conductive part terminal and exposed non-charged metal part) |
| Rated Input Voltage (V) | Three-phase, three-wire: AC200 to 480 |
| Rated Insulation Voltage (V) | AC528 |
| Return Function | Automatic return |
| Storage Temperature (°C) | -25 to +65 (with no condensation or icing) |
| Suitable For | (Wire type) Stranded wire, solid wire, ferrule terminal (cross-sectional area) 0.25 to 1.5 mm² (AWG24 to 16) |
| Type of Sign | DIN rail mounting, screw mounting |
| Width (mm) | 17.5 |
| Withstand Voltage | 2000VAC for 1 minute Between all external terminals and case Between all input terminals and all output terminals |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Feature
17.5mm width.Three-phase three-wire type.
Push-in Plus terminal type.
