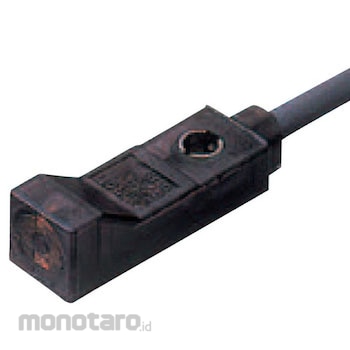

OMRON Proximity Sensor Ultra-Compact Type E2S (DC 3-Wire Type)
#Grup produk P112444578
Spesifikasi
| Ambient Humidity (%RH) | Operating: 35 to 90, Storage: 35 to 95 (no condensation) |
|---|---|
| Ambient Temperature (°C) | During operation: -25 to 70; Storage: -40 to 85 (but do not freeze or condense) |
| Cable Length (m) | 1 |
| Case Material | Polyarylate |
| Cord | Standard |
| Current Consumption (mA) | 13 or less (24 VDC, no load) |
| Head Shape | Square |
| Included Accessories | Mounting bracket |
| Indicator Lamp | Operation display (orange) |
| Influence of Temperature | Within the temperature range of -25 to 70°C, at 23°C, detection distance is within ±15% |
| Influence of Voltage | ± 2.5% or less of sensing distance at rated power voltage within the range of rated power voltage ± 10% |
| Insulation Resistance (MΩ) | Between live parts and case: 50 or more (at 500 VDC) |
| Objects to Detect | Possible: Magnetic metal (non-magnetic metal reduces the detection distance.) |
| Operating Voltage Range (V) | DC10~30 |
| Power Supply Voltage (V) | DC12 ~ 24 Ripple (pp) 10% or less |
| Protection Class | IEC standard IP67 |
| Protection circuit | Power supply reverse connection protection, surge absorption |
| Shielding | Unshielded type |
| Type | Built-in amplifier |
| Type of Connection | Cord drawer type |
| Vibration Resistance (Destruction) Frequency (Hz) | 10~55 , 1.5 mm double amplitude, 2 hours each in X, Y, and Z directions |
