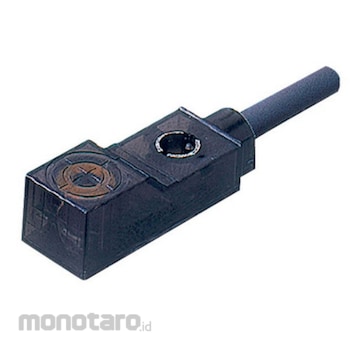

OMRON Proximity Sensor Ultra-Compact Type E2S (DC 2-Wire Type)
#Grup produk P112444550
Spesifikasi
| Ambient Humidity (%RH) | Operating: 35 to 90, Storage: 35 to 95 (no condensation) |
|---|---|
| Ambient Temperature (°C) | During operation: -25 to 70; Storage: -40 to 85 (but do not freeze or condense) |
| Case Material | Polyarylate |
| Cord | Standard |
| Differential Distance | 10% or less of detection distance |
| Head Shape | Square |
| Included Accessories | Mounting bracket |
| Influence of Temperature | Within the temperature range of -25 to 70°C, at 23°C, detection distance is within ±15% |
| Influence of Voltage | ± 2.5% or less of sensing distance at rated power voltage within the range of rated power voltage ± 10% |
| Insulation Resistance (MΩ) | Between live parts and case: 50 or more (at 500 VDC) |
| Leakage Current (mA) | 0.8 or less |
| Objects to Detect | Possible: Magnetic metal (non-magnetic metal reduces the detection distance.) |
| Operating Voltage Range (V) | DC10~30 |
| Output | DC 2-wire type |
| Power Supply Voltage (V) | DC12 ~ 24 Ripple (pp) 10% or less |
| Protection Class | IEC standard IP67 |
| Protection circuit | Load short-circuit protection, surge absorption |
| Shielding | Unshielded type |
| Type | Built-in amplifier |
| Type of Connection | Cord drawer type |
| Vibration Resistance (Destruction) Frequency (Hz) | 10~55 , 1.5 mm double amplitude, 2 hours each in X, Y, and Z directions |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Warning
For products whose delivery date is confirmed each time, we display a [tentative delivery date] because we need to confirm the delivery date with the supplier each time you place an order, including the production status.After placing your order, we will confirm the delivery date with the supplier, and depending on the number of delivery days, we may ask you if you would like to continue making arrangements.
Please check the details in the information you will receive from the manufacturer at a later date.
Feature
Ultra-compact size and high performance.Stable detection and response frequency of 1kHz for runout of work with built-in 5.5mm ultra-compact amplifier
Low current consumption
