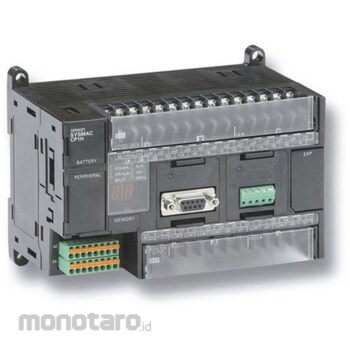

OMRON Programmable Controller X Type
#Grup produk P112444259
Spesifikasi
| Allowable Voltage Range (V) | DC20.4 to 26.4 (When the number of expansion is 4 or more / DC21.6 to 26.4) |
|---|---|
| Ambient Humidity to Use (%RH) | 10 to 90 RH (no condensation) |
| Applicable Standard | cULus (Class I Div 2 Hazardous Location Certified Product), NK, Lloyd, EC Directive |
| Atmosphere | No corrosive gas |
| Clock Function | Available / Accuracy: Monthly difference -4.5 minutes to -0.5 minutes (ambient temperature 55°C), -2.0 minutes to +2.0 minutes (ambient temperature 25°C), -2.5 minutes to +1.5 minutes (ambient temperature 0°C) |
| Command | Word length: 1 to 7 steps/1 instruction Types: Approx. 500 types (FUN No. is 3 digits) |
| Communication Function | Built-in peripheral port (USB1.1) x 1: Support software connection only Up to 2 serial communication option boards can be installed Up to 2 Ethernet communication option boards can be installed (Up to 1 can be installed when using Ver.1.0) |
| Data Memory | 32K words |
| Data Memory Capacity | 20K steps |
| Function | Maximum number of function block definitions: 128, maximum number of instances: 256 Languages that can be used in function block definitions: ladder chart, structured text (ST) |
| Holding Time (ms) | (Power supply) 2 or more |
| In/Out control Method | Combined use of cyclic scan and processing method |
| Inrush Current (A) | 30 or less (at cold start at normal temperature) 20 ms or less |
| Insulation Resistance (MΩ) | DC primary power supply and DC secondary power supply / non-isolated |
| Memory Backup | Flash memory: User programs, parameters (PC system settings, etc.), comment information, and all data memory areas can be saved in flash memory (initial data memory values) Battery backup: Holding relays, data memory, counters (flags and current values) |
| Noise resistance | Compliant with IEC 61000-4-4 2kV (power line) |
| Number of Input Points | 24 points |
| Number of Outputs | 16 points |
| Power Supply | DC power supply |
| Power Supply Voltage (V) | DC24 |
| Programming language | Ladder chart method |
| Pulse Output | 100kHz 4 axes |
| Register points | Data register/16 points (16 bits) Index register/16 points (32 bits) |
| Storage Temperature (°C) | -20 to +75 (excluding battery) |
| Type of control | Stored program method |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Warning
* Please use a replacement battery within 2 years after manufacture.Ulasan Produk
