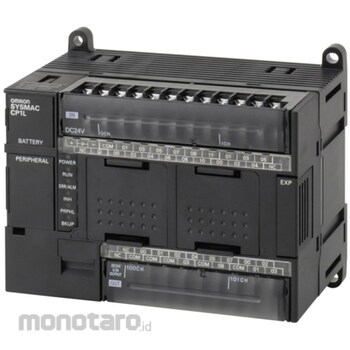

OMRON Programmable Controller M Type I/O 30 Points
#Grup produk P112444198
Spesifikasi
| Applicable Standard | cULus (Class I Div2 Hazardous Location Certified Product), NK, Lloyd, EC Directive |
|---|---|
| Basic interrupt function | Input interrupt / Input interrupt counter mode / Timed interrupt |
| Battery Life (Year) | 5 at 25°C |
| Clock Function | Accuracy/monthly difference: -4.5 minutes to -0.5 minutes (ambient temperature 55°C), -2.0 minutes to +2.0 minutes (ambient temperature 25°C), -2.5 minutes to +1.5 minutes (ambient temperature 0°C) |
| Command | Word length: 1 to 7 steps/1 instruction type: Approximately 500 types (FUN No. is 3 digits) |
| Common Processing Time (ms) | 0.4 |
| Communication Function | Built-in peripheral port (USB1.1) x 1: Support software connection only Up to 2 serial communication option boards can be installed; Up to two Ethernet communication option boards can be installed (up to one can be installed when using Ver.1.0) |
| Data Memory | 32K words D0 to D32767 |
| Function | Maximum number of function block definitions: 128, Maximum number of instances: 256; Languages available in function block definition: ladder chart, structured text (ST) |
| High-speed counter function | 4 points/2 axes (DC24V input); Phase difference (4x) 50kHz, Single phase (Pulse + direction, Up/Down, Add) 100kHz,; Numeric range: 32-bit Linear mode/Ring mode,; Interrupt: Target value match comparison/band comparison |
| In/Out control Method | Combined use of cyclic scan and processing method |
| Memory | Trace memory / 4000 words |
| Memory Backup | Flash memory/User programs, parameters (PC system settings, etc.), comment information & the entire data memory area can be saved in the flash memory (data memory initial value); Battery backup/retention relay, data memory, counter (flag/current value) |
| Number of Input/Output Points | 18 inputs, 12 outputs |
| Number of tasks | 288 (cycle execution task 32, interrupt task 256) |
| Program Memory Capacity | 10K steps |
| Programming language | Ladder chart method |
| Register points | Data register/16 points (16 bits) DR0 to DR15; Index register/16 points (32 bits) IR0 to IR15 |
| Type | USB port type |
| Type of control | Stored program method |
