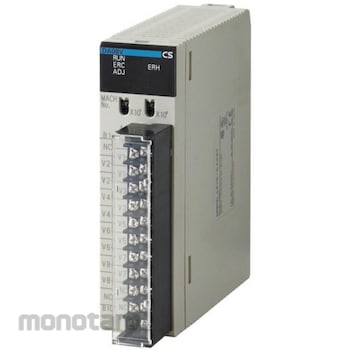

OMRON Programmable Controller CS Series Analog Output Unit
#Grup produk P112444091
Spesifikasi
| Ambient Humidity to Use (%RH) | 10 to 90 RH (no condensation) |
|---|---|
| Applicable Standard | UL, CSA, NK, Lloyd, EC directive |
| Conversion speed | 1ms / point |
| Current Consumption (A) | (5V) 0.13, (26V) 0.18 |
| External Connection | Detachable terminal block |
| Insulation Resistance (MΩ) | Between insulation parts / 20 or more (DC500V) |
| Mounting Position | CPU device for CS series or expansion device for CS series |
| Number of Occupied Units | For Unit 1 (Unit No. 0-95) |
| Number of Outputs | 8 points |
| Output Signal | 1 to 5V, 0 to 5V, 0 to 10V, -10 to 10V (8 points individually) |
| Resolution | 767011 |
| Self-Diagnosis Function | Diagnostic results are displayed with LEDs |
| Type of Insulation | Non-isolated between inputs |
| Unit Type | CS1 advanced I / O unit |
| Withstand Voltage (V/minute) | Between insulation parts AC1000 |
