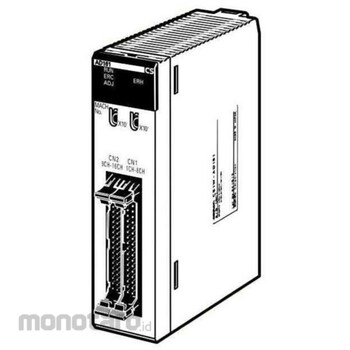

OMRON Programmable Controller CS Series Analog I/O Unit
#Grup produk P112444073
Spesifikasi
| Ambient Humidity to Use (%RH) | 10 to 90 RH (no condensation) |
|---|---|
| Applicable Standard | cULus (Class Div 2 hazardous area certified product), EC Directive |
| Conversion speed | 250 μs / point or less (can also be set to 1 ms / point) |
| Current Consumption (A) | (5V) 0.15, (26V) 0.06 |
| External Connection | MIL connector |
| Input range | 1-5V, 0-5V, 0-10V, -10-10V, 4-20mA (16 points individually) |
| Insulation Resistance (MΩ) | Between insulation parts / 20 or more (DC500V) |
| Mounting Position | CPU device for CS series or expansion device for CS series |
| Number of Input Points | 16 points |
| Number of Occupied Units | Number of occupied units: Unit 2 (Units No. 0 to 94) |
| Resolution | 1/8000 (can also be set to 1/4000) |
| Self-Diagnosis Function | Diagnostic results are displayed with LEDs |
| Type of Insulation | Non-isolated between inputs |
| Unit Type | CS1 advanced I / O unit |
| Withstand Voltage (V/minute) | Between insulation parts AC1000 |
