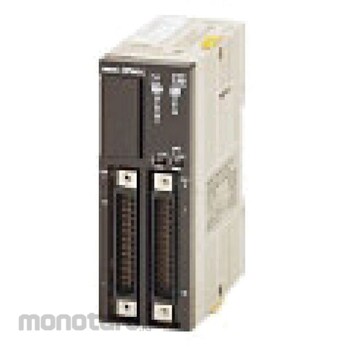

OMRON Programmable Controller CPM2C Series CPU Unit
#Grup produk P112444055
Sebelum PPN:
Rp4.699.900 - Rp11.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Allowable Voltage Range (V) | DC20.4~26.4 |
|---|---|
| Ambient Humidity to Use (%RH) | 10 to 90 RH (no condensation) |
| Atmosphere | Ambient / free from corrosive gas |
| Command | Word length: 1 step/1 instruction, 1 to 5 words/1 instruction Types: basic instructions (14 types), application instructions (105 types, 185 instructions) |
| Communication Function | Peripheral port: Host link, tool bus, non-protocol, process computer connection RS-232C port: Host link, non-protocol, 1:1 link slave station, NT link (1:1) (*dedicated connection cable or interface unit required) |
| Data Memory | READ/WRITE enabled: 2048 words (DM0000 to 2047), error history area for DM2000 to 20221 Read only: 456 words (DM6144 to 6599) PC system settings: 56 words (DM6600 to 6655) |
| Input Method | DC24V |
| Inrush Current (A) | 25 or less |
| Insulation Resistance (MΩ) | 20 or more (between isolated circuits with 500 VDC) |
| Noise resistance | Compliant with IEC61000-4-4 2kV (power line) |
| Number of Input Points | 6 points |
| Number of Input/Output Points | 10 points |
| Number of Outputs | 4 points |
| Number of Pulses | Catch input / 2 points |
| Output Type | Transistor (source) |
| Power Consumption (W) | 3 |
| Power Supply Voltage (V) | DC24 |
| Pulse Output | 2 points (10 Hz to 10 kHz each without acceleration/deceleration, no direction control) or 1 point (trapezoidal acceleration/deceleration 10 Hz to 10 kHz each, with direction control) or 2 points (variable duty ratio output (PWM output)) |
| Response Time | Input constant time (ON response time = OFF response time): Can be set for all input contacts (1ms/2ms/3ms/5ms/10ms/20ms/40ms/80ms) |
| Shape of Tip | (Pulse synchronization) 1 point: Combining a high-speed counter and pulse output, the pulse output is possible by multiplying the frequency of the input pulse from the high-speed counter by a fixed factor |
| Storage Temperature (°C) | Ambient / -20 to +75 (excluding battery) |
| Type of control | Stored program method |
| Vibration Resistance (Hz) | Compliant with JIS C0041 10 to 57, amplitude 0.075 mm, 57 to 150, acceleration 9.8 m/s² X, Y, Z directions 80 minutes each (8 minutes sweep x 10 sweeps = total 80 minutes) |
| Withstand Voltage | AC2300V 1min (between isolated circuits) |
