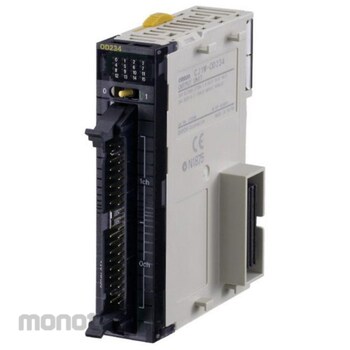

OMRON Programmable Controller CJ1/CJ1M Transistor Output Unit
#Grup produk P112444019
Spesifikasi
| Applicable Standard | cULus (Class I Div2 Hazardous Location Certified Product), NK, Lloyd, EC Directive |
|---|---|
| Common Specifications | 16 points, 1 common |
| Current Consumption (A) | 5V system: 0.22 |
| External Connection | MIL connector |
| Inrush Current (A) | 4.0 / point 10ms max. |
| Insulation Resistance (MΩ) | 20 / between external terminals and GR terminal (at 100 VDC) |
| Leakage Current (mA) | 0.1 or less |
| Load voltage (V) | DC20.4~26.4 |
| Number of Circuits | 32 points (16 points / common 2 circuits) |
| Number of Outputs | (I / O) 32 points (high speed) |
| Occupied In/Out Points | Output / 2CH |
| Output Current (A) | 0.5 |
| Output specifications | Sink type |
| Output voltage (V) | DC24 |
| Power Supply | (External) DC20.4 ~ 26.4V 110mA or more |
| Response Time | (ON) 15μs or less, (OFF) 80μs or less |
| Type | Transistor output unit |
| Voltage (V) | Residual / 1.5 or less |
| Withstand Voltage | 1000V AC for 1 minute between external terminals and GR terminal Leakage current 10mA or less |
