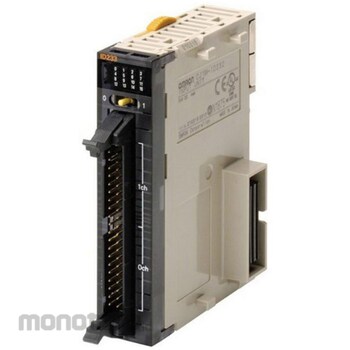

OMRON Programmable Controller CJ1/CJ1M DC Input Unit
#Grup produk P112443977
Spesifikasi
| Allowable Voltage Range (V) | DC20.4~26.4 |
|---|---|
| Applicable Standard | cULus (Class I Div2 Hazardous Location Certified Product), NK, Lloyd, EC Directive |
| Common Specifications | 16 points, 1 common |
| Current (mA) | (ON) 3 or more, (OFF) 1 or less |
| Current Consumption (A) | 5V system /0.2 |
| External Connection | MIL connector |
| Input Current (mA) | 4.1 |
| Input Impedance (ohm) | 5.6k |
| Input Method | DC |
| Input Voltage (V) | DC24 |
| Insulation Resistance (MΩ) | 20 / between external terminals and GR terminal (at 100 VDC) |
| Number of Circuits | 32 points (16 points / common 2 circuits) |
| Number of Input Points | (I / O) 32 points (high speed) |
| Occupied In/Out Points | 2CH |
| Response Time (ms) | (ON / OFF) 8.0 or less (0 to 32 can be switched depending on the setting) ・ (When 0 is set, the ON response time is 15μs or less due to the delay of the internal element. The OFF response time is 90μs or less.) |
| Series | CJ1 |
| Simultaneous On Points | 75% (12 points / common) Simultaneously ON (at 24 VDC) |
| Type | DC24V input unit |
| Voltage (V) | (ON) DC 19.0 or more, (OFF) DC 5 or less |
| Withstand Voltage | 1000V AC for 1 minute between external terminals and GR terminal Leakage current 10mA or less |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Warning
* For the connector type, the connector is not included. Use a compatible connector, or use a compatible connector terminal block conversion unit or compatible I / O relay terminal.Ulasan Produk
