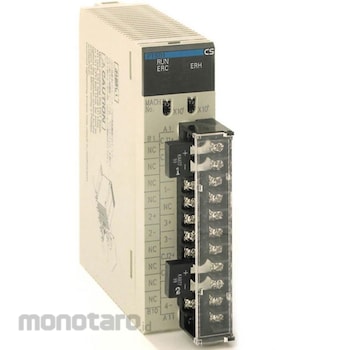

OMRON Process Input Unit (Insulated Resistance Temperature Detector Input Unit)
#Grup produk P112443898
Spesifikasi
| Ambient Humidity to Use (%RH) | 10 to 90 RH (no condensation) |
|---|---|
| Applicable Standard | cULus (Class II Div2 hazardous area certified product), EC Directive |
| Display Part | Front / 3 LEDs (during normal operation, abnormalities detected by the unit, abnormalities detected by the CPU unit) |
| External Connection | 21-point removable terminal block (M3 screw, proper tightening torque 0.5 Nm) |
| Input range | Pt100Ω (JIS, IEC), JPt100Ω (4 points individually) |
| Insulation Resistance (MΩ) | Between each channel at once: 20 (according to DC500V insulation resistance tester) |
| Measurement Method | 3-wire type |
| Mounting Position | CPU device or CS series expansion device |
| Number of Connections | Installable / 80 units (10 units x 8 devices) |
| Number of Input Points | 4 points |
| Outer Dimensions (WxHxD) (mm) | 35 x 130 x 126 (excluding base unit height) |
| Structure | Base mounting type, single size |
| Suitable For | (PLC) CS series |
| Time | CPU unit uptake maximum / conversion cycle + CPU unit 1 cycle, effect time on CPU unit cycle time / 0.3ms |
| Type | Insulated RTD input unit |
| Unit Type | CS Series High-performance I / O unit |
