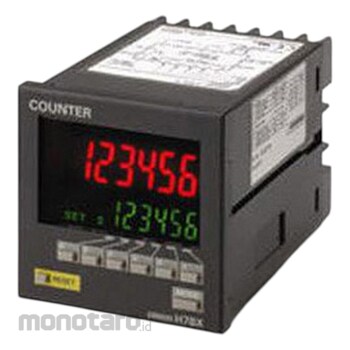

OMRON Preset counter H7BX
#Grup produk P112443852
Spesifikasi
| Ambient Humidity to Use (%RH) | 25 to 85 (no condensation) |
|---|---|
| Case Color | Black (N1.5) |
| Function | 1-stage preset counter Total preset counter (switchable) |
| Included Accessories | 2 mounting brackets, terminal cover |
| Input Signal | CP1, CP2, reset 1, reset 2, key protection |
| Insulation Resistance (MΩ) | 100 or more (at 500 VDC) Between conductive part terminals and exposed non-charged metal parts |
| Maximum counting speed | (Counter) 30Hz, 5kHz (switching) (ON / OFF ratio 1: 1) CP1, CP2 common setting |
| Noise resistance | Between power supply terminals: ± 1.5kV Between input terminals: Square wave noise by ± 600V noise simulator (pulse width 100ns / 1μs, rise 1ns) |
| Number of Digits | 6 digits |
| Operating Temperature Range (°C) | -10 to 55 (no icing) |
| Output Configuration | Contact output + NPN transistor output |
| Power Consumption (VA) | 8 or less (24C), 5.3 W or less (12 to 24 VDC) |
| Power Input (V) | AC24 (50/60Hz) DC12-24 (ripple 20% or less) |
| Power Supply Voltage (V) | AC24 (50/60) / DC12-24 (ripple content 20% or less) |
| Protection Class | IP54 (front only) |
| Safety Standard | cURus: UL508/CSA C22.2 No.14 EN61010-1 (IEC61010-1): Pollution Degree 2/Overvoltage Category II EN61326 VDE0106/Part100 |
| Service Life | Mechanical life: 10 million operations or moreElectrical life: 100,000 operations or more (250 A / 30 V DC, 3 A resistance load) |
| Storage Temperature Range (°C) | -25 to 65 (no icing) |
| Type | Preset counter |
| Type of Connection | (External) Screw terminal |
| Type of Display | 7-segment negative LCD with backlight (character height) Count value/13.5mm (red/green) Set value/9mm (green) *Displayed only when the power is turned on. Not displayed when power is off. |
| Type of Terminal Fitting | Embedded mounting |
| Vibration Resistance (Destruction) Frequency (Hz) | 10~55, single amplitude 0.75mm, 3 directions, 2h each |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Feature
Bright and easy-to-read negative LCD display.High visibility is achieved by using a backlit negative LCD. The display color change function (red ⇔ green) allows you to check the output status even from a distance. Each digit key makes operation easy. All basic settings are DIP switches. Possible with
Supports a wide range of inputs with NPN / PNP input multi and DC 2-wire center support.
Obtained UL and CSA. CE mark compatible waterproof structure IP54 equivalent Front part only
