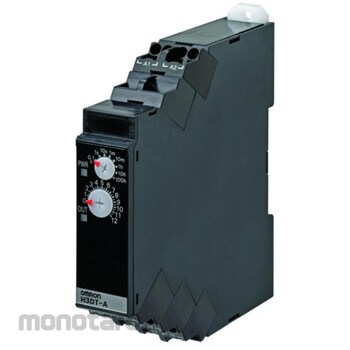

OMRON Power-On Delay Timer H3DT-A
#Grup produk P112443834
Spesifikasi
| Adjustable Time | (Time range: Set time range) 0.1s: 0.1 to 1.2s, 1s: 1 to 12s, 10s: 10s to 120s, 1min: 1 to 12min, 10min: 10 to 120min, 1h: 1 to 12h, 10h: 10 to 120h, 100h: 100-1200h |
|---|---|
| Ambient Humidity to Use (%RH) | 25~85 |
| Impulse Voltage (V) | 5k (between power supply terminals), 7.4k (conducting part terminal and operation part) |
| Influence of Temperature | ± 2% (ratio to the maximum scale time) or less (± 2% ± 10ms or less in the 1.2s range) |
| Influence of Voltage | ± 0.5% (ratio to the maximum scale time) or less (± 0.5% ± 10ms or less in the 1.2s range) |
| Insulation Resistance (MΩ) | 100 or more (with DC500V mega) |
| Length (mm) | 17.5 |
| Maximum Setting Time of Graduation | 12 |
| Noise resistance | Square wave noise by noise simulator (pulse width 100ns / 1μs rising 1ns) ± 1.5kV |
| Operating Temperature Range (°C) | -20 to 60 (no condensation or freezing) |
| Operating Time Variation | ± 1% (ratio to the maximum scale time) or less (± 1% ± 10ms or less for 1.2s range) |
| Power Supply | Outside |
| Power Supply Voltage (V) | AC/DC24~240 |
| Protection Class | IP30 (terminal is IP20) |
| Rated Insulation Voltage (V) | AC250 |
| Rated power supply voltage | AC24-240V 50/60 Hz DC24-240V ripple 20% or less |
| Return Voltage | 10% or less of rated voltage |
| Series | H3DT |
| Storage Temperature (°C) | -40 to 70 (no condensation or freezing) |
| Time | 0.1 seconds → 100 hours |
| Timer Function | Single |
| Type of Sign | DIN rail mounting |
| Width (mm) | 90 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Feature
17.5mm width. Push-in Plus terminal block type.Ulasan Produk
