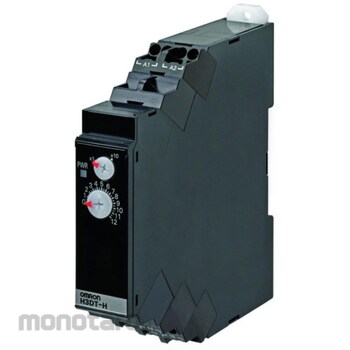

OMRON Power Off Delay Timer H3DT-H L Series
#Grup produk P112443515
Spesifikasi
| Adjustable Time | (Time range: Set time range) x1: 1-12s, x10: 10s-120s |
|---|---|
| Ambient Humidity to Use (%RH) | 25~85 |
| Contact | 1c |
| Control Output | Contact output: AC250V 5A resistive load (cosΦ=1), DC30V 5A resistive load; Contact material: Ag alloy (recommended fuse: BLN5 (little fuse), 0216005MXEP) |
| Influence of Temperature | ± 2% (percentage of maximum scale) or less (± 2% ± 10ms or less for 1.2s range) |
| Influence of Voltage | ± 10% (percentage of maximum scale) ± 0.05s or less |
| Insulation Resistance (MΩ) | 100 or more (with DC500V mega) |
| Noise resistance | Square wave noise by noise simulator (pulse width 100ns / 1μs rising 1ns) ± 1.5kV (between power supply terminals) |
| Operating Temperature Range (°C) | -20 to +60 (no icing) |
| Operating Time Variation | ± 1% (ratio to maximum scale) or less (± 1% ± 10ms or less for 1.2s range) |
| Output Type | Relay 1c |
| Protection Class | IP30 (terminal is IP20) |
| Rated Insulation Voltage (V) | AC250 |
| Return Function | Timed return |
| Return Voltage | 10% or less of rated voltage |
| Safety Standard | cULus : UL 508/CSA C22.2 No.14; EN 61812-1: Pollution degree 2/Overvoltage Category III; CCC: Pollution degree 2/Overvoltage Category II GB 14048.5; LR: Category ENV1.2 |
| Static Resistance (kV) | 4 (malfunction), 8 (destruction) |
| Storage Temperature (°C) | -40 to +70 (but no freezing) |
| Type of Operation | Instantaneous method |
| Type of Sign | DIN rail mounting |
| Vibration Resistance (Destruction) Frequency (Hz) | 10~55, single amplitude 0.75mm, 3 directions, 2h each |
| Vibration Resistance (Malfunction) Frequency (Hz) | 10~55, single amplitude 0.5 mm, 3 directions, 10 min each |
| Withstand Voltage | AC2900V 50/60Hz 1min (live metal parts and operating parts); AC2000V 50/60Hz 1min (between control output and operation circuit); AC1000V 50/60Hz 1min (between non-continuous contacts) |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Feature
17.5mm width. Push-in Plus terminal block type.Two types of time range can be selected from 10.0 seconds to 120 seconds.
