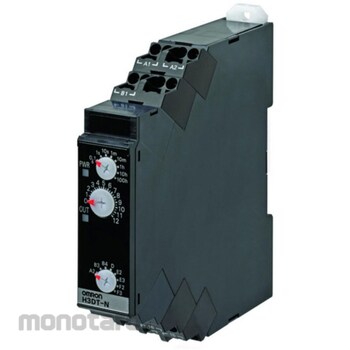

OMRON Multi Timer H3DT-N/-L
#Grup produk P112442233
Sebelum PPN:
Rp1.199.900 - Rp1.499.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Adjustable Time | (Time range: Set time range) 0.1s: 0.1 to 1.2s, 1s: 1 to 12s, 10s: 10s to 120s, 1min: 1 to 12min, 10min: 10 to 120min, 1h: 1 to 12h, 10h: 10 to 120h, 100h: 100-1200h |
|---|---|
| Ambient Humidity to Use (%RH) | 25~85 |
| Function | Input function (start): Timing start function Output function (control output): Output according to operation mode when dial set value is reached |
| Impulse Voltage (V) | 5k (between power supply terminals), 7.4k (conducting part terminal and operation part) |
| Influence of Temperature | ± 2% (ratio to the maximum scale time) or less (± 2% ± 10ms or less in the 1.2s range) |
| Influence of Voltage | ± 0.5% (ratio to the maximum scale time) or less (± 0.5% ± 10ms or less in the 1.2s range) |
| Input Method | Voltage input |
| Input Signal | start |
| Input Voltage (V) | H level: AC / DC 20.4 to 264, L level: AC / DC 0 to 2.4 |
| Insulation Resistance (MΩ) | 100 or more (with DC500V mega) |
| Noise resistance | Square wave noise by noise simulator (pulse width 100ns / 1μs rising 1ns) ± 1.5kV |
| Operating Temperature Range (°C) | -20 to +60 (no icing) |
| Operating Time Variation | ± 1% (ratio to the maximum scale time) or less (± 1% ± 10ms or less for 1.2s range) |
| Power Reset | Minimum power open time 0.1s |
| Power Supply Voltage (V) | AC/DC24~240 (50/60Hz) |
| Protection Class | IP30 (terminal is IP20) |
| Rated Insulation Voltage (V) | AC250 |
| Rated power supply voltage | AC24-240V 50/60 Hz DC24-240V ripple 20% or less |
| Return Voltage | 10% or less of rated voltage |
| Safety Standard | cULus: UL 508/CSA C22.2 No.14 EN 61812-1: Pollution Degree 2/Overvoltage Category III CCC: Pollution Degree 2/Overvoltage Category II GB 14048.5 LR: Category ENV1.2 |
| Storage Temperature Range (°C) | -40 to +70 (but no freezing) |
| Type of Sign | DIN rail mounting |
| Vibration Resistance (Destruction) Frequency (Hz) | 10~55, single amplitude 0.75mm, 3 directions, 2h each |
| Withstand Voltage | 2900 VAC 50/60 Hz 1 min (between live metal part and operating part) 2000 VAC 50/60 Hz 1 min (between control output and operating circuit) 1000 VAC 50/60 Hz 1 min (between discontinuous contacts) |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Warning
* When the power supply voltage is DC24V, there is an inrush current of about 0.5A, so be careful when switching the power supply of the timer main unit with a non-contact output such as a sensor.Feature
Time range, operation mode multi-timer. Push-in Plus terminal block type. The N type is capable of 8 operations, and the L type is capable of extended 8 operations. DIN rail mounting type.Ulasan Produk
