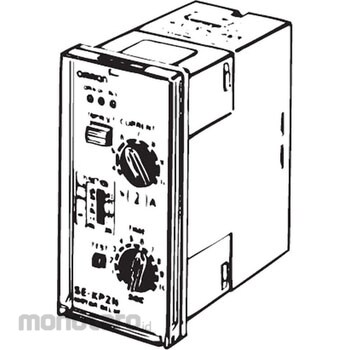

OMRON Motor Relay SE
#Grup produk P112442057
Sebelum PPN:
Rp2.199.900 - Rp2.699.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Allowable Fluctuation of Voltage | (Control power circuit) 10% or -15% of the rated voltage (however, 10% or -50% for manually resettable open-phase elements) |
|---|---|
| Contact Configuration | 1c(output) |
| Durability | 10000 times (contact is not energized) (Manual reset type) |
| Frequency (Hz) | 50/60 (allowable fluctuation range: ± 5% of rated frequency) |
| Installation Altitude (m) | 2000 or less |
| Insulation Resistance (MΩ) | Between all electrical circuits and mounting panel: 10 or more Between contact circuits and other circuits and between contact poles: 5 or more |
| Lightning impulse withstand voltage | 1.2/50μs waveform (JEC-212) Positive and negative polarity, 3 times each Between the electrical circuit and the mounting panel: 6000V; Between contact circuit and other circuits: 4500V; Between control power circuit terminals: 4500V |
| Operating Temperature Range (°C) | -10 to 60 (no icing) |
| Operation | Test button: Instantaneous operation (operating element LEDs do not light up) *Overload elements only |
| Protective Function | Overload, open phase, anti-phase protection (3E relay) |
| Rated Current (A) | 1~80 or 64~160 (three-phase) [SET-3 * Current converter primary current] |
| Rated Voltage (V) | (Motor circuit) AC500 or less (three-phase) [Set-3□ Current converter primary voltage]; (Control power circuit) AC100/110/120, AC200/220/240, AC380/400/440 (three-phase) [single-phase voltage if reverse phase protection is not required] |
| Storage Temperature (°C) | -25~65 |
| Vibration Resistance (Destruction) Frequency (Hz) | 10~25, 2mm double amplitude 2h each for X, Y, Z directions |
| Vibration Resistance (Malfunction) Frequency (Hz) | 10~55, 0.3 mm double amplitude, 10 min each in X, Y, and Z directions |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Warning
For products whose delivery date is confirmed each time, we display a [tentative delivery date] because we need to confirm the delivery date with the supplier each time you place an order, including the production status.After placing your order, we will confirm the delivery date with the supplier, and depending on the number of delivery days, we may ask you if you would like to continue making arrangements.
Please check the details in the information you will receive from the manufacturer at a later date.
