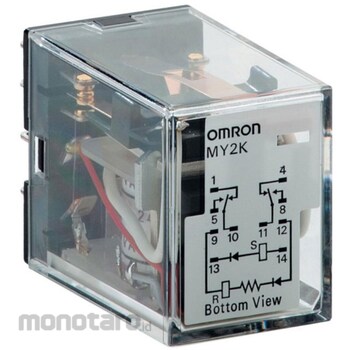

OMRON Mini Power Relay MYK
#Grup produk P112441951
Spesifikasi
| CR Circuit | None |
|---|---|
| Classification | Latching type (coil latching) |
| Coil Rated Voltage (V) | DC24 |
| Coil Resistance (ohm) | (Set coil) 470, (Reset coil) 940; (Coil temperature 23°C, DC coil resistance tolerance ±15%) |
| Contact Configuration | 2c |
| Contact Material | Au plating + Ag |
| Contact Resistance (miliΩ) | 50 or less (DC5V 1A voltage drop method) |
| Electrical Durability | More than 200,000 times (rated load, switching frequency 1800 times/h, ambient temperature condition 23°C) |
| Insulation Resistance (MΩ) | 100 (Measure the same part of the withstand voltage with a DC500V insulation resistance meter) |
| Maximum Permissible Voltage (V) | 110% or less of the rated voltage |
| Mechanical Durability | 100 million times (opening and closing frequency 18000 times / h) |
| Number of Pins | 10 |
| Number of Poles | 2 |
| Operating Temperature Range (°C) | -55 to 60 (no condensation or freezing) |
| Outer Dimensions (WxDxH) (mm) | 21.5 or less x 40 or less x 28 or less |
| Power Consumption | Set coil: approx. 1.3, reset coil: approx. 0.6 |
| Protection Class | In a case |
| Rated Current (mA) | 52 (set coil), 25 (reset coil) |
| Return Voltage | 80% or less |
| Shape | Model MY2K-02 |
| Terminal Shape | PCB terminal |
| Type | Power relay |
| Type of Connection | Standard type |
| With or Without Diode | None |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Warning
For products whose delivery date is confirmed each time, we display a [tentative delivery date] because we need to confirm the delivery date with the supplier each time you place an order, including the production status.After placing your order, we will confirm the delivery date with the supplier, and depending on the number of delivery days, we may ask you if you would like to continue making arrangements.
Please check the details in the information you will receive from the manufacturer at a later date.
Feature
Eliminates the use of lead and supports environmental protection.Obtained additional VDE standard (Germany) and IMQ standard (Italy).
By changing the color of the AC / DC coil tape, the distinguishability of AC / DC specifications is improved.
