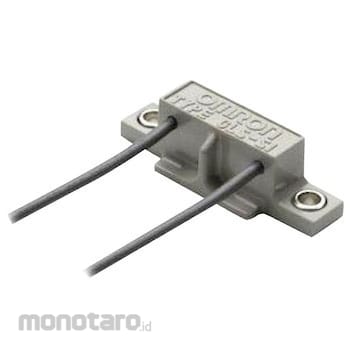

OMRON Magnetic Proximity Sensor GLS Type
#Grup produk P112441711
Spesifikasi
| Ambient Humidity (%RH) | Operation and storage: 35 ~ 85 each (with no condensation) |
|---|---|
| Ambient Temperature (°C) | During operation and storage: -20 to 60 (but do not allow freezing or condensation) |
| Circuit | (contact) 1a |
| Contact Capacity | Maximum operating voltage: DC100V; Maximum current: DC0.1A; Maximum contact capacity: 10W (including opening and closing) |
| Detection Distance (mm) | 15 |
| Material (Magnet) | ABS |
| Operating Ambient Humidity (%RH) | Operation and storage: 35 ~ 85 each (with no condensation) |
| Response Frequency (Hz) | 20 or less |
| Sensor Shape | Square |
| Service Life | 50,000,000 times or more (at 24VDC 0.1A resistive load) |
| Shock Resistance (m/s²) | 300 X, Y, Z directions 3 times |
| Vibration Durability Frequency (Hz) | 10~55 double amplitude 1.5mm X, Y, Z directions each 2h |
| Vibration Resistance (Destruction) Frequency (Hz) | 10~55 , 1.5 mm double amplitude, 2 hours each in X, Y, and Z directions |
| Withstand Voltage (V) | AC1000 1min between each terminal and case, contact: DC250 1min, leakage current 1mA or less |
| Withstand Voltage (V/minute) | AC1000 Between each terminal and case, Contact: DC250 Leakage current 1mA or less |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Feature
Easy-to-handle magnetic type proximity sensor Ideal for detecting the opening and closing of a proximity sensor door that operates a reed switch with a permanent magnet.Ulasan Produk
