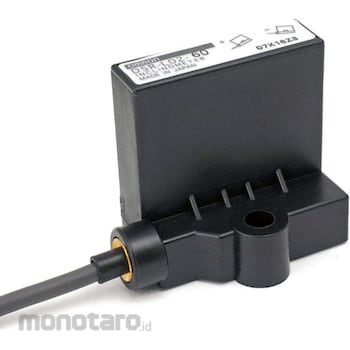

OMRON Linear Inclination Sensor D5R
#Grup produk P112441614
Spesifikasi
| Current Consumption (mA) | 20 or less |
|---|---|
| Insulation Resistance (MΩ) | Between mounting panel and terminals: 100 or more (500V mega) |
| Linearity | 1% FS or less |
| Operating Humidity Range (%RH) | 30~95 |
| Operating Temperature Range (°C) | -20~+60 |
| Output Current (mA) | 0.1 or less |
| Power Supply Voltage (V) | DC5±0.5 |
| Protection Class | IP67 |
| Sensitivity | (Non-detection axis) ± 50mV or less |
| Storage Humidity Range (%RH) | 30 ~ 95 (However, 60 ~ 70°C, 30 ~ 60 RH) |
| Storage Temperature Range (°C) | -30~+70 |
| Withstand Voltage (V) | Between mounting panel and terminals: 1000 1 minute (leakage current 1 mA or less) |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Feature
Achieves a wide measurement angle of ±60° and high accuracy with linearity of 1%. High waterproof and dustproof properties of IP67. Low cost and space-saving.Ulasan Produk
