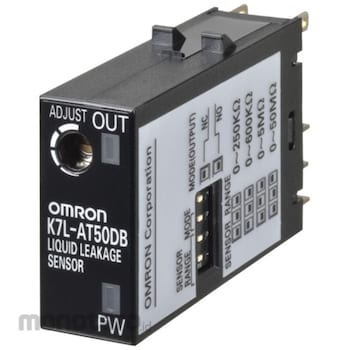

OMRON Leakage Detector K7L-AT50/AT50D
#Grup produk P112441571
Sebelum PPN:
Rp2.699.900 - Rp4.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Ambient Humidity to Use (%RH) | 45~85 |
|---|---|
| Conditions to Use | Used in combination with leak detection strips |
| Control Target | Liquids with high specific resistance such as chemicals and pure water |
| Insulation Resistance (MΩ) | Measurement point Case and charging part 10 with DC100V |
| Main application | Leak Detection |
| Overall Depth (mm) | 46 |
| Overall Length (mm) | 12.8 |
| Overall Width (mm) | 28.8 |
| Power Consumption (mW) | 1000 or less |
| Power Supply Voltage (V) | 12 to 24 DC (allowable voltage fluctuation range: 10 to 30 DC) |
| Remark | For Push-In Plus terminal block sockets |
| Resistance (MΩ) | (Operation) 0 to 50 Variable range 0: 0 to 0.25, Range 1: 0 to 0.6, Range 2: 0 to 5, Range 3: 0 to 50; (Reset) 105% or more of operating resistance value |
| Response Time (ms) | (Leak detection) Operation time: 800 or less, Recovery time: 800 or less, Power-on start-up time: 2 seconds or less |
| Withstand Voltage (V) | Measurement points: Case and charging part AC1000 50/60Hz for 1 minute |
| Withstand Voltage (V/minute) | Measurement points: Case and charging part AC1000 (50/60Hz) |
