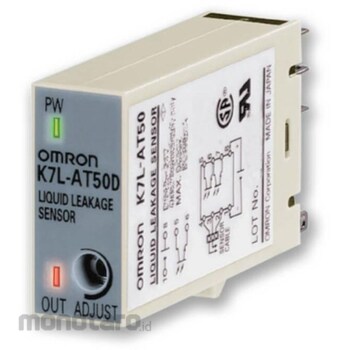

OMRON Leakage Detector K7L-AT50/AT50D
#Grup produk P112441553
Spesifikasi
| Ambient Humidity to Use (%RH) | 45~85 |
|---|---|
| Conditions to Use | Used in combination with leak detection strips |
| Control Target | Liquids with high specific resistance such as chemicals and pure water |
| Function | [Disconnection detection] Detection signal: Max. 10VDC 200ms, Detection time: 10 seconds or less, Recovery: Recovers by power reset |
| Included Accessories | Connection terminal block x 1, setting bean driver x 1, terminator x 1 |
| Insulation Resistance (MΩ) | Measurement point Case and charging part 10 with DC100V |
| Operating Voltage Range (V) | DC10~30 |
| Output Format | NPN connection: Yes, PNP connection: No |
| Power Consumption (W) | 1 or less |
| Power Supply Voltage (V) | DC12~24 |
| Resistance | Recovery: 105% or more of operating resistance, [Operation] 0 to 50MΩ variable, Range 0: 0 to 250kΩ, Range 2: 0 to 5MΩ, Range 1: 0 to 600kΩ, Range 3: 0 to 50MΩ |
| Response Time | Start-up time when power is turned on: 2 seconds or less |
| Type | With sensor disconnection detection function |
| Withstand Voltage (V/minute) | Measurement points: Case and charging part AC1000 (50/60Hz) |
