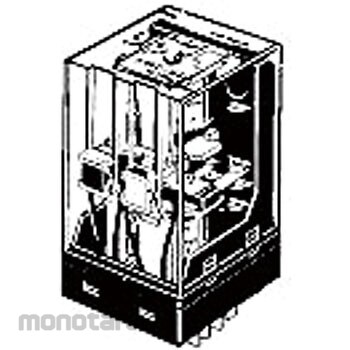

OMRON Latching Relay G7K
#Grup produk P112441474
Spesifikasi
| Classification | Standard type |
|---|---|
| Contact Configuration | 2c2a |
| Contact Material | Au plating + Ag |
| Contact Resistance (miliΩ) | 50 or less (DC1V 10mA voltage drop method) |
| Electrical Durability | Over 100,000 times (opening/closing frequency 1,800 times/h) (at ambient temperature of 23°C) |
| Insulation Resistance (MΩ) | 100 or more (at 500 VDC) |
| Maximum Contact Voltage (V) | AC250, DC125 |
| Maximum Permissible Voltage (V) | 110% of rated voltage (130% / 3h) |
| Mechanical Durability | 300,000 times or more (opening and closing frequency 1800 times / h) |
| Number of Poles | 4 |
| Operating Temperature Range (°C) | -10 to 55 (no condensation or freezing) |
| Operating Time (ms) | 30 or less (when rated operating voltage is applied, contact bounce is not included) |
| Operating Voltage | 80% or less of rated voltage |
| Power Consumption | About 0.9 |
| Power Consumption (VA/W) | About 0.9 |
| Protection Class | In a case |
| Rated Carrying Current (A) | 3 |
| Resistive load | AC220V 3A, DC110V 1A |
| Return Voltage | 80% or less of rated voltage |
| Terminal Shape | Plug-in terminal |
| Type | Latching relay |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Warning
For products whose delivery date is confirmed each time, we display a [tentative delivery date] because we need to confirm the delivery date with the supplier each time you place an order, including the production status.After placing your order, we will confirm the delivery date with the supplier, and depending on the number of delivery days, we may ask you if you would like to continue making arrangements.
Please check the details in the information you will receive from the manufacturer at a later date.
Feature
Small eye or locking latching relay with manual buttons.Achieves miniaturization with a height of 71 mm, a width of 42.5 mm, and a depth of 48.5 mm. Moreover, it is lightweight at 175g.
Set reset responds quickly with a pulse signal.
Gold plating is used for the contacts, and it has excellent high contact reliability.
For the socket, use OMRON's PTF14A (for LY4 relay).
