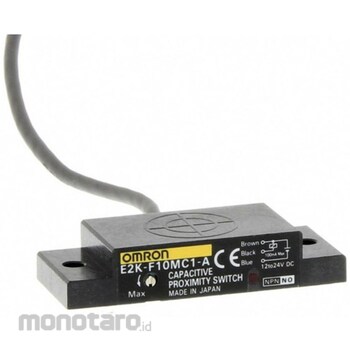

OMRON Flat Type Proximity Sensor E2K-F
#Grup produk P112440299
Spesifikasi
| Ambient Humidity (%RH) | Operation and storage: 35 ~ 85 each (with no condensation) |
|---|---|
| Ambient Temperature (°C) | During operation and storage: -10 to 55 (but do not allow freezing or condensation) |
| Cable Length (m) | 2 |
| Case Material | Heat resistant ABS |
| Current Consumption (mA) | 10 or less (at 24 VDC) |
| Detection Distance (mm) | 10 (variable detection distance range: 4 to 10) |
| Differential Distance | 15% or less of detection distance |
| Head Shape | Square flat |
| Included Accessories | Adjustment driver, instruction manual |
| Indicator Lamp | Detection indicator (red) |
| Influence of Temperature | Within the temperature range of -10 to 55°C, detection distance at 23°C is within ±15% |
| Influence of Voltage | ± 2.5% or less of sensing distance at rated power voltage within the range of rated power voltage ± 10% |
| Insulation Resistance (MΩ) | Between live parts and case: 50 or more (at 500 VDC) |
| Material (Detection Surface) | Heat resistant ABS |
| Operating Voltage Range (V) | DC10~30 |
| Operation Mode | NO |
| Output Format | NPN |
| Power Supply Voltage (V) | DC12 ~ 24 Ripple (pp) 10% or less |
| Protection Class | IEC standard IP64 |
| Protection circuit | Reverse connection protection, surge absorption |
| Response Frequency (Hz) | 100 |
| Sensitivity Adjustment | 11-turn volume |
| Shielding | Unshielded |
| Type of Connection | Cord drawer type |
| Vibration Resistance (Destruction) Frequency (Hz) | 10~55 , 1.5 mm double amplitude, 2 hours each in X, Y, and Z directions |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Warning
For products whose delivery date is confirmed each time, we display a [tentative delivery date] because we need to confirm the delivery date with the supplier each time you place an order, including the production status.After placing your order, we will confirm the delivery date with the supplier, and depending on the number of delivery days, we may ask you if you would like to continue making arrangements.
Please check the details in the information you will receive from the manufacturer at a later date.
Feature
Space-efficient flat type (built-in amplifier, thickness 10 mm)Can be directly attached to metal surfaces
