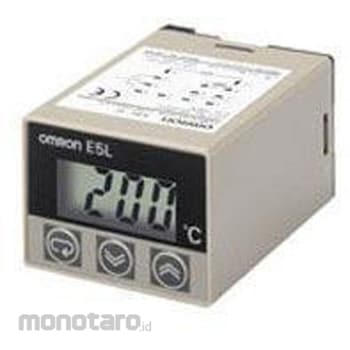

OMRON Electronic Thermostat E5L-C
#Grup produk P112439691
Sebelum PPN:
Rp1.499.900 - Rp1.599.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Allowable Fluctuation of Voltage | 85 ~ 110% of power supply voltage |
|---|---|
| Ambient Humidity to Use (%RH) | 25-85 relative humidity |
| Applicable Standard | EN61010-1 (IEC61010-1) Pollution degree 2, Overvoltage category II |
| Character Height (mm) | 12 |
| Control Output | Relay / reed 1a AC250V 10A cosΦ = 1 (resistance load) |
| Dimensions (mm) | 45x35 |
| Function | Setting change protection (key protection), input correction, forward / reverse operation switching |
| Indication accuracy | ± (1°C + 1 digit) or less |
| Influence of Temperature | (± 1% PV or ± 2°C, whichever is greater) ± 1 digit or less |
| Influence of Voltage | (± 1% PV or ± 2°C, whichever is greater) ± 1 digit or less |
| Insulation Resistance (MΩ) | 100 or more (with DC500V mega) |
| Measuring Accuracy | ± (1°C + 1 digit) or less |
| Operation Indicator Lamp | (Reverse operation) ON / ON, OFF / OFF, (Direct operation) ON / ON, OFF / OFF |
| Pattern Setting | Digital setting |
| Power Consumption (VA) | About 3 |
| Power Supply Voltage (V) | AC100~240 (50/60Hz) |
| Protection Class | Front / IP40, Terminal / IP00 |
| Sampling Cycle | 2S |
| Sensitivity Adjustment | 1 ~ 9°C, every 1°C |
| Storage Temperature Range (°C) | -25 to +65 (with no condensation or icing) |
| Type | Plug-in type |
| Type of Display | LCD digital instructions |
| Type of Input | Thermistor |
| Type of control | ON/OFF control |
| Vibration Resistance (Destruction) Frequency (Hz) | Vibration frequency 10-55, double amplitude 0.75mm, X, Y, Z each direction 2h each |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Feature
Ideal for simple control for built-in devices. High-capacity switching of AC250V 10A is possible, so direct load switching is possible. Ready-to-use with attached sensor. Finger protection type and non-protection type are available for the socket. With the addition of a new digital type, setting is even easier and more reliable.Ulasan Produk
