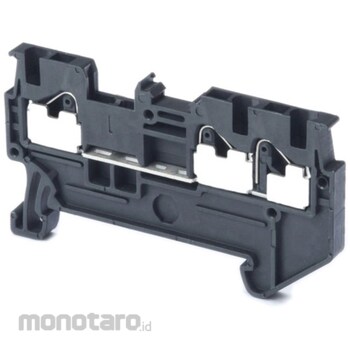

OMRON Din Rail Terminal Block Push-In Type XW5T-P for Relay
#Grup produk P112439275
Spesifikasi
| Applicable Standard | cULus(UL 1059), IEC 60947-7-1 |
|---|---|
| Color | Dark gray |
| Connection | 1 : 2 |
| Corresponding Name Plate | Type XW5Z-P1.5LB □ or commercially available inscription paper 9.5mm width, 0.5mm thickness |
| Corresponding Short Circuit Bar | Type XW5S-P1.5- □ (□: Number of poles = 2, 3, 4, 5, 10) |
| Dimensions (mm) | 3.5x54.1x30.5 |
| End Plate | Type XW5E-P1.5-1.2-1 |
| Insertion/Removal Durability (times) | 50 |
| Number of Tiers | 1 |
| Operating Humidity Range (%RH) | 5~95 |
| Operating Temperature Range (°C) | -40 to 55 (no condensation or icing) |
| Rated Current (A) | [IEC]17.5/1.5mm²(SOL), 13.5/1.0mm²(STR), [UL](UG)D : 15(SOL), 10(STR)/10/5 |
| Rated Voltage (V) | [IEC]500 [UL](UG)D : 51~150/151~300/301~600 |
| Shock Resistance (m/s²) | 500, 11ms 6 direction each 5 times |
| Suitable Tool | XW4Z-00B |
| Suitable Wire | 0.08mm²-1.5mm² AWG28-AWG14, ( if the ferrule attachment) 0.14mm²-1.0mm² AWG26-AWG18 |
| Vibration Resistance (Hz) | 10 to 150, Acceleration : 50m/s², 3 directions 80min each |
| Withstand Voltage | AC1890V 1min (Leakage current 1mA or less) |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Feature
Push-in Plus terminal block.It feels like it's plugged into an earphone jack, making it easy to plug in and hard to pull out.
Two-handed work is also possible with the driver holding mechanism.
Space-saving with a minimum width of 3.5 mm.
Contributes to the miniaturization of the control panel.
