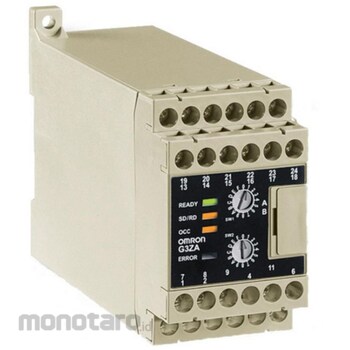

OMRON Current Detector for Multi-Point Power Controller G3ZA
#Grup produk P112438896
Spesifikasi
| Alarm Output | NPN open collector (1 point) |
|---|---|
| Allowable Voltage Range (V) | Power supply / AC85-264, load / AC75-264 |
| Altitude (m) | 2000 or less |
| Ambient Humidity to Use (%RH) | 25~85 |
| Applicable Standard | UL508(Listing), CSA22.2 No.14, EN50178/EN61000-6-4(EN55011 : 1998/AI : 1999 ClassA, group1), EN61000-6-2 : 2001 |
| Communication Protocol | RS-485 |
| Included Accessories | Instruction manual |
| Indication accuracy | (Current range) 0 to 50A/±3A, 0 to 150A/±9A, 0 to 100%/±6% (Type with heater disconnection detection function) |
| Input | Manipulation amount / 0.0 to 100.0% (via RS-485 communication) |
| Insulation Resistance (MΩ) | 100 or more (at 500 VDC) (between primary and secondary) |
| LED | Display method |
| Leakage Current (mA) | Alarm output / 0.4 or less |
| Load voltage (V) | AC100~240 |
| Maximum Load Current (mA) | Trigger output / 21 (built-in short circuit protection circuit), alarm output / 50 |
| Output Voltage | Trigger / each channel DC12V ± 15%, alarm / (residual) 1.5 or less |
| Power Consumption (W) | 5.9 or less (at maximum load) |
| Protection Class | IP20 |
| Protective Function | Memory / EEPROM (nonvolatile memory), 100,000 writes |
| Rated Voltage (V) | AC100~240(50/60Hz) |
| Shock Resistance (m/s²) | 300 (3 axes, 6 directions, 3 times each) |
| Standard | TUV / UL / CSA certification |
| Storage Temperature Range (°C) | -25 to +65 (with no icing or condensation) |
| Synchronization Type | Start-stop synchronization |
| Type | Power conditioner |
| Type of Display | LED |
| Type of control | Optimal cycle control, soft-start optimum cycle control, optimum cycle control for three phases |
| Vibration Resistance (Hz) | (Vibration frequency) 10-55, (Acceleration) 50m / s² X, Y, Z directions |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Warning
*If you use the heater disconnection detection function, a current detector (CT) is not included. *When using the soft start function, it is necessary to use it in combination with an SSR without zero cross.For products for which delivery dates must be confirmed each time, a "tentative delivery date" is displayed because we need to confirm the delivery date, including production status, with our suppliers each time an order is placed.
After you place an order, we will confirm the delivery date with our supplier, and depending on the delivery date, we may ask you whether you wish to continue with the order.
Please check the details in the information you will receive from the manufacturer at a later date.
Feature
Optimal cycle control achieves high precision controllability with low noise. Achieved miniaturization compared to power regulators. By combining with SSR with zero cross function, power control with less noise is possible. One unit can control up to 8 SSRs individually. Realizes output amount setting and heater burnout detection via communication (SR-485). SmartFB library for G3ZA is also available. Compatible with CE marking. Main upgrade features: Added a soft start function that can be used with lamp heaters, added a three-phase optimum cycle control function that can be used with three-phase heaters, and can also detect 150A current when combined with a dedicated CT.Ulasan Produk
