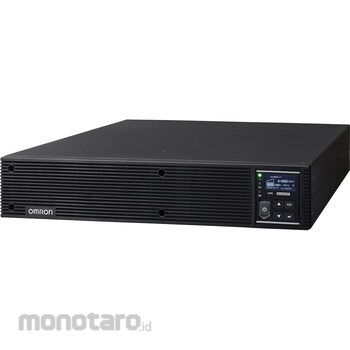

OMRON BU Series UPS Body
#Grup produk P112437596
Spesifikasi
| AS ONE Part Number | 64-3207-43 |
|---|---|
| Backup Time (minute) | 4.5 (2700W) |
| Battery | Equipped with a long-life battery, replaceable (hot swap) |
| Cooling Method | Forced air cooling (with FAN) |
| Dimensions (mm) | 430x660x86 |
| Function | Bypass function standard equipment |
| Input Frequency (Hz) | 50/60±5 |
| Main Unit Dimensions (WxDxH) (mm) | 430x660x86 |
| Operation Pattern | Inverter power supply system |
| Output Capacity | 3000/2700 |
| Output Frequency (Hz) | (During commercial operation) Synchronized with input frequency, (During backup operation) 50/60±0.5% |
| Output of Outlet | C19 (female) x 2, C13 (female) x 8 |
| Power Consumption (W) | At no load, normal: 35/maximum: 120 At rated load, normal: 225/maximum: 310 |
| Power Supply Method | Continuous commercial power supply / sine wave output |
| ROHS Directive (Corresponding to 10 Substances) | Correspondence |
| Rated Input Voltage (V) | AC200, AC208, AC220, AC230, AC240 |
| Rated Output Current (A) | 15 |
| Rated Output Voltage (V) | AC200, AC208, AC220, AC230, AC240, AC100 |
| Safety Standard | Acquired UL1778 |
