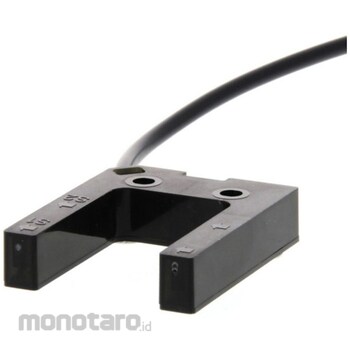

OMRON Amplifier Built-in Photoelectric Sensor (Groove Type) E3Z-G
#Grup produk P112437152
Sebelum PPN:
Rp2.399.900 - Rp3.399.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Ambient Humidity (%RH) | Operating: 35 to 85, Storage: 35 to 95 (with no icing or condensation) |
|---|---|
| Ambient Illumination to Use (Lx) | Light receiving surface illumination Incandescent lamp: 3000 or less, Sunlight: 10000 or less |
| Ambient Temperature (°C) | During operation: -25 to 55; Storage: -40 to 70 (but do not freeze or condense) |
| Case Material | ABS |
| Control Output | Load power supply voltage DC26.4V or less, load current 100mA or less (residual voltage 1V or less), open collector output type (NPN output), light-ON/light-OFF switch type |
| Detection Distance (mm) | 25 (groove width) |
| Detection Method | Groove type |
| Detection Target | Opaque body |
| Emission Wavelength (nm) | 940 |
| Head Shape | groove |
| Included Accessories | Instruction manual |
| Indicator Lamp | Operation indicator (orange) |
| Insulation Resistance (MΩ) | Between lead wires and case: 20 or more (at 500 VDC) |
| Light Color | Infrared |
| Light Source (Emission Wavelength) | Infrared light emitting diode |
| Power Supply Voltage (V) | DC12-24 ± 10% Ripple (pp) 10% or less |
| Protection Class | IEC standard IP64 |
| Protection circuit | Reverse power connection protection, output short circuit protection, mutual interference prevention function |
| Type | Built-in amplifier |
| Vibration Resistance (Destruction) Frequency (Hz) | 10~55 , 1.5 mm double amplitude, 2 hours each in X, Y, and Z directions |
| Withstand Voltage (V/minute) | Between lead wires and case: AC1000 (50/60Hz) |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Warning
For products whose delivery date is confirmed each time, we display a [tentative delivery date] because we need to confirm the delivery date with the supplier each time you place an order, including the production status.After placing your order, we will confirm the delivery date with the supplier, and depending on the number of delivery days, we may ask you if you would like to continue making arrangements.
Please check the details in the information you will receive from the manufacturer at a later date.
