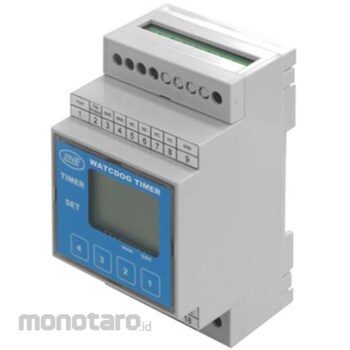

Line Seiki Watchdog Timer (DIN Case)
#Grup produk P112435640
Spesifikasi
| Display | 7-segment LCD, 4 digits, character height: 7mm |
|---|---|
| Function | Watchdog Timer |
| Input | Pulse input (Input)/Disable (DIS)/Key protect (K/P) |
| Input Signal | Non-contact/contact input: Open collector input L<2V (current flow approx. 1mA) |
| Memory | E2PROM Data retention for 10 years Rewrite count 10,000 times |
| Output | Non-contact output: NPN open collector input (DC30V 100mA max.) / Relay output: 1c contact (AC/DC30V 0.5A max.) |
| Output Type | Hold (timer stop output) |
| Power Supply | DC12-24V (-15%-+10%) |
| Setting Range | 00:01 - 99:59 |
| Specification | ●Key protection: Activated by key protection input ●Input speed: 10Hz (pulse input [Input]) |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Feature
Non-operating detector A timer that checks whether there is a continuous pulse input within a certain period of time. It judges whether the device is operating or not based on the production pulse input and notifies you of any abnormality. Setting time: 1 second to 99 minutes 59 seconds The timer function can be turned on and off (terminal input)Includes key protection function to prevent erroneous operation (terminal input)
DIN rail mounting
