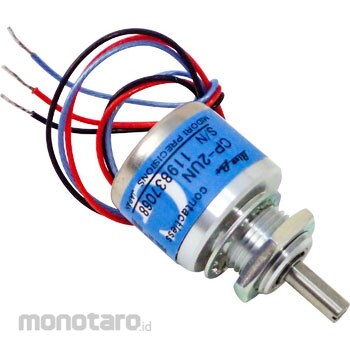

MIDORI PRECISIONS Non-contact rotation angle sensor CP-2UN series
#Grup produk P112434951
Spesifikasi
| Electrical Rotation Angle (°) | ±45 |
|---|---|
| Input Voltage (V) | max 10 |
| Mass (g) | About 10 |
| Mechanical Rotation Angle (°) | 360 / endless |
| Operating Temperature Range (°C) | -40 to 100 |
| Resistance Tolerance (%) | ±50 |
| Resistance Value (ohm) | 14k |
| Rotational Torque (mN.m[gfcm]) | 0.05 |
| Sensitivity | (Output) min 2% Vin / 10 ° |
| Single linearity (%) | ±2FS(FS=90°) |
| Temperature Compensation (°C) | (Range) -20 to 80 |
| Type | Non-contact type |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Feature
A non-contact potentiometer that uses a magnetoresistive element. Since the resistance value is displaced by the movement of the magnetic field of the magnets brought close to each other, low torque and high durability are realized without being affected by noise due to sliding. It also has a built-in temperature compensation circuit and is active in a wide range of fields such as tension control and valve opening transmitters.Ulasan Produk
