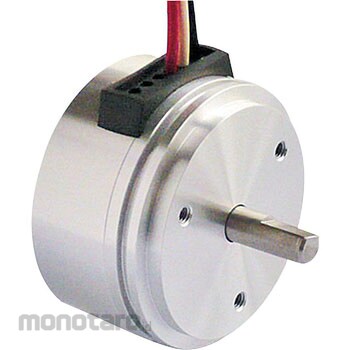

MIDORI PRECISIONS Contactless rotation angle sensor CP-45H series
#Grup produk P112433934
Spesifikasi
| Current Consumption (mA) | 10 or less (1 output), 20 or less (2 outputs) |
|---|---|
| Electrical Rotation Angle (°) | 360 |
| Hysteresis | ± 0.2 or less |
| Input Voltage (V) | DC5 |
| Linearity | (Absolute) ± 0.4% FS |
| Load Resistance | 10kΩ |
| Mass (g) | About 100 |
| Mechanical Rotation Angle (°) | 360 / endless |
| Operating Temperature Range (°C) | -40 to +100 (no condensation) |
| Output | 10 to 90%Vin(0.5 to 4.5V) |
| Resolution | 12bit/Vin(max20rpm) |
| Response Time | 0.9ms |
| Rotational Torque (mN.m[gfcm]) | 1.8 or less |
| Specification | EMS:100V/m 1M to 1GHz (ISO 11452) |
| Storage Temperature Range (°C) | -40 to +100 (no condensation) |
| Temperature Characteristics | ±1.08° |
| Type | Non-contact type |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Warning
* The resistance value of Hall IC products cannot be measured.* Because it may be affected by the external magnetic field, please check it carefully in the installation environment.
* When handling the product, please handle it in an environment with anti-static measures.
* Please note that static electricity may be generated during operation even in the installation environment, which may cause unexpected problems.
* Please read the precautions for use.
Feature
The CP-45H series is a renewal of the CP-45H, which was developed as a non-contact version of the well-established conductive plastic potentiometer "CPP-45B".In addition to achieving excellent durability, high reliability, and noiselessness by combining Hall ICs and magnets, we have expanded the customizable range to support various applications such as improved temperature characteristics and the addition of input / output variations.
Addition of variations for power supply Improvement of static electricity resistance Addition of output variations Improvement of radiation resistance electromagnetic wave characteristics
2 Additional output variation reduction of current consumption
