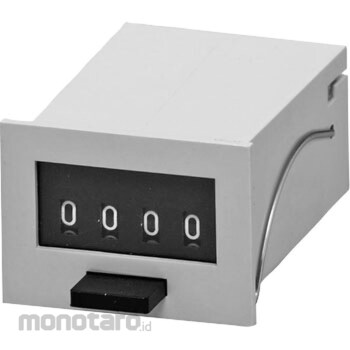

Line Seiki Compact Electromagnetic Total Counter
#Grup produk P112433873
Spesifikasi
| Allowable Voltage fluctuation | -15 to +10% |
|---|---|
| Counting Method | 1 pulse 1 count (1/2 count when energized, 1/2 count when paused) |
| Frequency (Hz) | 50/60 shared |
| Main Unit Dimensions, Width W x Depth D x Height H (mm) | 42×29×78.5 |
| Mass (g) | 100 |
| Maximum counting speed | 10Hz |
| Number of Digits | 4 |
| Number to Display (mm) | v4.0 × 2.4 (white letters on black) |
| Operating Humidity Range | 85% RH or less |
| Operating Temperature Range (°C) | -5 to +40 (no freezing) |
| Power Consumption | AC3 to 4VA, DC2 to 3W |
| Pulse Width | 50ms |
| ROHS Directive (Corresponding to 10 Substances) | Correspondence |
| Rated time | (Energized) continuous |
| Ratio | (Make) 1: 1 |
| Reset | Manual reset pushbutton |
| Type of Connection | Lead wire 250mm |
| Type of Sign | Panel mounting clip spring |
| Voltage (V) | DC24 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Feature
A lightweight, low-priced economy electromagnetic counter with a simple mechanism that significantly reduces the number of parts compared to conventional products.Use
For general industrial use such as machine tools, textile machines, printing machines, packaging machines, food processing machines, etc., as well as for counting management of office equipment, vending machines, various leasing machines, etc.Ulasan Produk
