UT81 series handheld digital oscilloscope multimeters combine oscilloscope and digital multimeter in one. Oscilloscope measurement mode includes signal input, data processing, auto measure, waveform storage, and transfer.
Multimeter mode features AC/DC voltage and current, resistance, diode, continuity, frequency, duty ratio, and capacitance.
Models in UT81 series: UT81B, UT81C

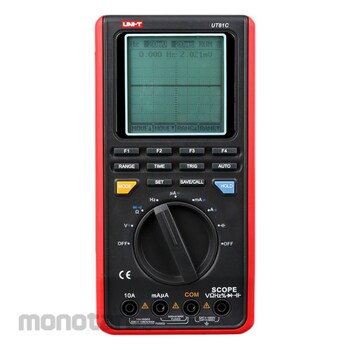

UNI-T UT81 Series Scope Digital Multimeters
#Grup produk P112432096
Spesifikasi
| AC Current (A) | 10, ±(1.5%+8) |
|---|---|
| AC Voltage (V) | 750, ±(1%+15) |
| Auto Power OFF | Yes |
| Auto Range | Yes |
| Bandwidth (Hz) | 16M |
| Capacitance (μF) | 100, ±(3%+8) |
| Continuity Buzzer | Yes |
| Contrast and Brightness Setup | Yes |
| DC Current (A) | 10, ±(1%+8) |
| DC Voltage (V) | 1000, ±(0.8%+8) |
| Diode | Yes |
| Display | 160 x 160 monochrome |
| Display (mm) | 60x60 |
| Display Count | 4000 |
| Duty Cycle (%) | 0.1~99.9 |
| Frequency (Hz) | 10~10M, ±(0.1%+3) |
| Input Impedance (MΩ) | Around 10 |
| LCD Backlight | Yes |
| Low Battery Indication | Yes |
| Memory | 10 screens and setups |
| Power | 1.5V Battery (R6) X 4 |
| Product Color | Red and grey |
| Resistance (ohm) | 40M, ±(1%+5) |
| Sampling Rate (MS/s) | 80 |
| Size (mm) | 200x100x48 |
| Time Base Range | 50ns/div – 5s/div(1-2-5) |
| Time-Base Accuracy | ±(0.01%+1) |
| Trigger Types | Auto run/Normal/Single shot |
| USB interface | Yes |
| Vertical Accuracy | ±(5%+1) |
| Vertical Sensitivity (mV/div.) | 20~500 (1-2-5) |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
Features of UT81 Series Scope Digital MultimetersCertifications: CE, UKCA
- Low battery indication
- USB interface
- Duty cycle: 0.1~99.9%
- Diode/LCD backlight
- Auto range/auto power off
- Display: 160 x 160 monochrome
- Trigger types: auto run/normal/single shot
- Memory: 10 screens and setups
- Contrast and brightness setup
- Continuity buzzer
Use
Voltage measurement with waveform, AC voltage measurementUlasan Produk
