UT505 series handheld true RMS insulation resistance testers combine features of a digital multimeter and insulation resistance tester. Aside from the typical multimeter functions, these meters can also measure insulation resistance, PI, DAR, and automatically calculate resistance ratio to determine the insulation status.
Insulation Resistance (ohm) : 50V: 0.01M~50M, ±(3%+3) or 50M~1G, ±(3%+3); 100V: 1G~10G, ±(10%+3) or 0.01M~100M, ±(3%+3) or 100M~1G, ±(3%+3); 250V: 1G~20G, ±(10%+3) or 0.01M~200M, ±(1.5%+5) or 200M~1G, ±(1.5%+5); 500V: 1G~50G, ±(10%+3) or 0.01M~500M, 1G~100G, ±(10%+3) or 0.1M~2000M, ±(1.5%+5) or 2G~9.9G, ±(5%+3) or 10G~20G, ±(7%+3) or 20G~200G, ±(20%+3)±(1.5%+5) or 500M~1G, ±(1.5%+5); 1000V

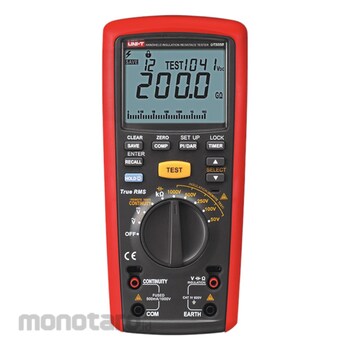

UNI-T UT505 Series Handheld Insulation Resistance Testers
#Grup produk P112431918
Spesifikasi
| AC Voltage (V) | 0~600, ±(1.5%+5) |
|---|---|
| Analog Bar Graph | Yes |
| Auto Discharge | Yes |
| Auto Fuse Check | Yes |
| Auto Range/True RMS | Yes |
| Capacitance | 100pF~500μF, ±(5%+5) |
| Compare Measurement | Yes |
| Continuity Buzzer | Yes |
| DC Voltage (V) | 0~600, ±(2%+3) |
| Dielectric absorption ratio (DAR) | 60s/15s and 60s/30s |
| Display (mm) | 78x59 |
| Display Count | 6000 |
| Frequency (Hz) | 45~1k, ±(0.1%+3) |
| General Resistance (ohm) | 0.01k~10M, ±(3%+3) |
| Insulation Resistance Load Current (ohm) | 50k~1M: 0%~10% |
| Leakage Current (μA) | 10~2000, ±(10%+3) |
| Low Battery Indication | Yes |
| Low Resistance Range (ohm) | 0.01~100 (about 5V/>200mA/20mA optional), ±(1.5%+3) |
| PI/Timing measurement | Yes |
| Power | 1.5V Battery (LR6) X 6 |
| Product Color | Red and grey |
| Short Circuit Current (mA) | <2 |
| Size (mm) | 103x225x59 |
| Step Voltage | 10% steps at 50%~120% of range |
| Test Voltages (V) | 50/100/250/500/1000, 0%~20% |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
Features of UT505 Series Handheld Insulation Resistance TestersCertifications: CE, UKCA, ETL
- Auto power off
- LCD backlight
- High voltage output alarm
- 99-group data storage
- Data hold
- Meets IEC 61557: 61557-1:2007; 61557-2:2007; 61557-4:2007
Use
DC voltage measurement, AC voltage measurement, Insulation resistance measurement, Motor wire and case insulation measurementUlasan Produk
