UT219 series is 600A true RMS professional clamp meter with CAT IV 600V rating. It is industrially designed with IP54 rating and able to withstand 2 meters drop test for measurement in harsh environments. This series is suitable for professional electricians, HVAC/R and motor service technicians.
Models in UT219 series: UT219E, UT219M, UT219DS

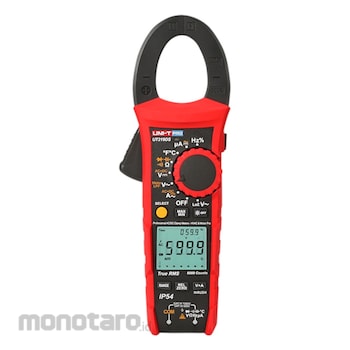

UNI-T UT219 Series Professional Clamp Meters
#Grup produk P112431635
Sebelum PPN:
Rp4.999.900 - Rp5.299.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| 3-Phase Motor Sequence Test | 600V |
|---|---|
| AC Current (A) | 600, ±(1.8%+6) |
| AC Current Frequency Response (Hz) | 40~400 |
| AC Voltage (V) | 1000, ±(1%+6) |
| Auto Power Off/MAX/MIN | Yes |
| Auto/Manual Range | Yes |
| Capacitance (mF) | 60, ±(4%+7) |
| DC Voltage (V) | 1000, ±(0.6%+3) |
| Data Hold (H)/Relative Mode (REL) | Yes |
| Diode Test | 3V |
| Display (mm) | 35x31 |
| Display Count | 6000 |
| Drop Test (m) | 2 |
| Function Selection (SELECT) | Yes |
| IP Rating | IP54 |
| Input Impedance (MΩ) | ≥10 |
| Jaw Opening | 33 |
| LoZ ACV Accuracy | ±(2.5%+6) |
| LoZ ACV Range (V) | 600 |
| Low Battery Indication | Yes |
| Power | 1.5V Battery (R03) X 3 |
| Product Color | Red and grey |
| Resistance (ohm) | 60M, ±(1%+3) |
| Size (mm) | 234.6x82x47 |
| Temperature (°C) | -40~1000, ±(2%+5) |
| Temperature (°F) | -40~1832, ±(2%+9) |
| True RMS | Yes |
| Zero Mode | Yes |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
Features of UT219 Series Professional Clamp MetersCertifications: CE, UKCA, cETLus, GS
- Auto/manual range/ZERO mode
- True RMS/auto power off
- MAX/MIN
- IP54/2m drop proof
- Data hold/relative mode
- Flashlight and auto backlight
- Low battery indication
Use
Current measurement, Voltage measurementUlasan Produk
