UT200 series are 6000-count digital clamp meters with auto range, large LCD, true RMS, autoscale memory, and NCV functions. They conform to CAT III 1000V/CAT IV 600V safety rating andcertified by CE/ETL. The UT206B, UT207B, and UT208B come with LoZ mode for eliminating ‘ghost ’voltage, LPF ACV function for measuring INV and VFD voltage, and inrush current modefor capturing transient current. The UT206B and UT208B also feature high-precision temperature measurement with 0.1 °C resolution, and can be equipped with a flexible current probe toextend the AC current measurement range to 3000A.
Models in UT200 series: UT205E, UT206B, UT207B, UT208B

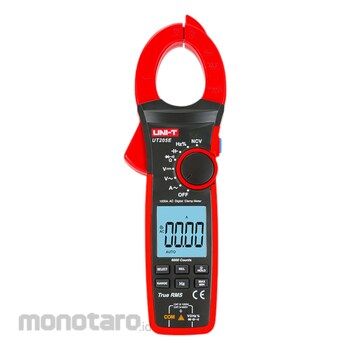

UNI-T UT200 Series 1000A True RMS Digital Clamp Meters
#Grup produk P112431538
Sebelum PPN:
Rp1.499.900 - Rp3.799.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| AC Current (A) | 1000, ±(2%+5) |
|---|---|
| AC Voltage (V) | 1000, ±(1.2%+3) |
| AC Voltage Frequency Response (Hz) | 40~400 |
| Capacitance (mF) | 60, ±(4%+5) |
| DC Voltage (V) | 1000, ±(0.5%+5) |
| Display (mm) | 43x45 |
| Display Count | 6000 |
| Duty Cycle (%) | 10~90, ±(2.6+7) |
| Jaw Opening | 42 |
| Low voltage frequency (Hz) | 10~1M, ±(0.1%+3) |
| Power | 1.5V Battery (R03) X 3 |
| Resistance (ohm) | 60M, ±(1%+2) |
| Size (mm) | 272x81x43.5 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
Features of UT200 Series 1000A True RMS Digital Clamp MetersCertifications: CE, UKCA, cETLus
- Flashlight button: Short press this button to turn on/off the flashlight
- NCV Multi-Segment Display and audio/visual alarm
- True RMS/Auto backlight
- NCV/Function retention
Use
Voltage measurement, NCV measurement, Resistance measurement, Capacitance measurementUlasan Produk
