UT191 Series professional multimeters designed for industrial users. This CE/GS/cTUVus certified multimeter series complies with CAT III 600V and is IP65 rated, suitable for use in damp and dusty environments. UT191’s new function memory’ retains the latest mode setting the next time it is turned on, improving efficiency for users. UT191T supports accurate and precise temperature measurement.
Models in UT191 series: UT191E, UT191T

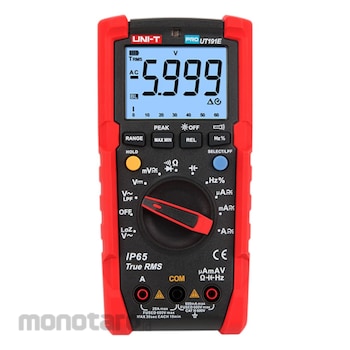

UNI-T UT191 Series Professional Multimeters
#Grup produk P112431495
Sebelum PPN:
Rp2.299.900 - Rp2.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| AC Current (A) | 20, ±(1%+3) |
|---|---|
| AC Current Frequency Response (Hz) | 45~400 |
| AC Voltage (V) | 600, ±(0.7%+3) |
| AC Voltage Frequency Response (Hz) | 45~400 |
| ACV Peak Hold | ±(2%+100) |
| Analog Bar Graph | 31 sections |
| Auto Power OFF | Yes |
| Auto/Manual Range | Yes |
| Capacitance (mF) | 60, ±(3%+5) |
| DC Current (A) | 20, ±(0.8%+3) |
| DC Voltage (V) | 600, ±(0.5%+3) |
| Data Hold/MAX/MIN | Yes |
| Diode/Continunity test | Yes |
| Display Count | 6000 |
| Drop Test (m) | 2 |
| Duty Cycle (%) | 0.1~99.9, ±(2+5) |
| Flashlight/Auto Backlight | Yes |
| Frequency (Hz) | 10~1M, ±(0.1%+4) |
| Function Selection (SELECT) | Yes |
| LCD Size (mm) | 58x42 |
| LoZ ACV Accuracy | ±(2%+5) |
| LoZ ACV Range (V) | 600 |
| Low Battery Indication | Yes |
| Low Pass Filter Accuracy (LPF ACV) | ±(2%+5) |
| Low Pass Filter Voltage (LPF ACV) (V) | 600 |
| Peak Current Detection | ±(3%+100) |
| Power | 9V Battery |
| Product Color | Red and grey |
| Resistance (ohm) | 60M, ±(0.8%+2) |
| Sampling Rate (time/s) | 3 |
| Size (mm) | 180x87x59 |
| True RMS | Yes |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
Features of UT191 Series Professional MultimetersCertificates: CE, UKCA, GS, cTUVus
- Measurement setting saved after power reset
- IP65, 2m drop proof
- True RMS/Peak value measurement
- Auto backlight
- 20A current measurement
- LoZ AC measurement
- Precise temperature measurement with resolution of 0.1°C
Use
Voltage measurementUlasan Produk
