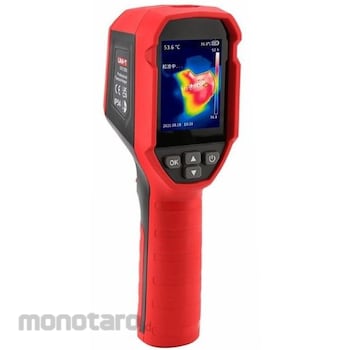

UNI-T Thermal Imager Camera
#Grup produk P112431273
Spesifikasi
| Adjustable Emissivity | Yes (0.01 - 0.99) |
|---|---|
| Alarms | High/Low temperature alarm (visual on-screen, beep, and flashing LED) |
| Battery | 3.7V / 2600mAh rechargeable lithium battery |
| Battery operating time | Over 8 hours |
| Communication Interface | USB Type-C |
| Display Screen (inch) | 2.4 TFT |
| Drop Protection (m) | 2 |
| Field of View (°) | 50×38 |
| Focus | Focus-Free |
| Frame Rate (Hz) | 25 |
| IFOV (spatial resolution) | 7.3mrad |
| IP Rating | IP54 |
| Image Mode | Thermal |
| Image Palettes | 6 options |
| Infrared Resolution (pixels) | 120x90 |
| Measurement Accuracy | ±2°C or ±2%, whichever is greater |
| Measurement Mode | Center spot, high and low temperature auto-tracking |
| Mounting | ¼inch tripod screw hole on the bottom |
| PC Software | PC analysis software is included |
| Size (mm) | 196x63x75 |
| Storage | 16GB Micro SD card |
| Temperature Measurement Range (°C) | -20 to 400 |
| Thermal Sensitivity (NETD) (mK) | < 60 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Fitur
Fitur- Resolusi inframerah: 120×90
- Rentang pengukuran suhu: - 20-400°C
- Mode pengukuran suhu: titik tengah, pelacakan suhu tinggi dan rendah
- Penyimpanan foto: Kartu TF 16GB
- Alarm suhu tinggi dan rendah: gambar, bip, LED berkedip
- Indikasi laser / pencahayaan LED
- Tiga desain pencegahan: IP54 / pencegahan jatuh dua meter
- Perangkat lunak analisis PC
- Enam pilihan palet
- Emisivitas yang dapat disesuaikan
- Waktu layanan tidak boleh kurang dari 9 jam
- Baterai litium isi ulang 3,7v/2600mah
- Desain bagian bawah ¼ Lubang sekrup dapat digunakan dengan tripod
