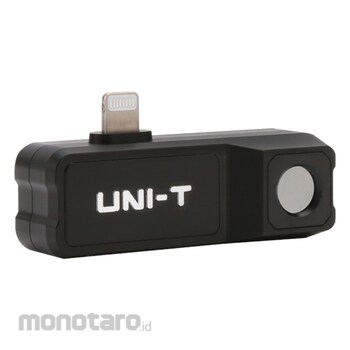

UTi120MS
Smartphone Thermal Camera Module for iPhone
UTi120MS is a professional smartphone thermal camera module for iPhone, which is compact, portable, and easy to operate through connecting with mobile phones. UTi120MS provides clear image with a fast response, and can also detect temperature up to 400°C. Users can troubleshoot HVAC problems or investigate heat source issues around the house faster and easier with this thermal camera module. It is a perfect tool for DIY homeowners,outdoor lovers, engineers, contractors and builders etc.
UNI-T Smartphone Thermal Camera Module for iPhone
#Grup produk P112431219
Spesifikasi
| Accuracy (°C) | ±2 or ±2% whichever is greater |
|---|---|
| Certificates | CE,UKCA,FCC,RoHS,MFi |
| Color Palettes | 7 (White hot, Lava, Ironbow,Black hot, Red hot, Rainbow, Rainbow HC) |
| Drop Proof (m) | 1 |
| Emissivity | 0.01~1.00 adjustable (0.95 default) |
| Field of View (°) | 50×38 |
| Focus | Focus free |
| Frame Rate (Hz) | ≤25 |
| High/Low Temperature Alarm | Yes |
| IFOV (spatial resolution) | 7.3mrad |
| Image Modes | Thermal,Fusion,PIP |
| Image/video Storage Format | JPEG, MP4 |
| Infrared Resolution (pixels) | 120×90 |
| Lens Focal Length (mm) | 2.28 |
| On Screen Analyzer | 6 Points/6 Lines/6 Rectangles/6 Circles |
| Size (mm) | 53×18.2×18.5 |
| Spectral Range (µm) | 8~14 |
| Temperature Measurement Range (°C) | -20 ~ 400 |
| Thermal Sensitivity (NETD) (mK) | ≤60 @25°C |
| USB | Lightning |
| Video Recording | Yes |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
Features :IR resolution: 120×90
Temperature measurement range: -20°Cto 400°C / -4°F to 752 °F
Auto alarm for high/low temperature
Auto tracking for hot spot/cold spot
On screen analyzer: Point 6/ Line 6/Rectangle 6/Circle 6
Image capture
Video recording
Color palettes: 7(White hot, Black hot, Red hot Ironbow, Lava, Rainbow, Rainbow HC)
Phone: iPhone (USB Lightning)
1m drop proof
Use
Applications of UTi120MManufacturing Machine Inspection
PCBA Inspection
Freezer Inspection
Electricity Inspection
Pipeline Inspection
Motor Inspection
