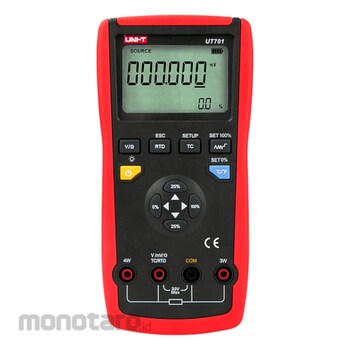

UNI-T Single Function Temperature Calibrator
#Grup produk P112431176
Spesifikasi
| Accuracy (mV) | 100.000 : ±(0.05%+3), 1000.0 : ±(0.05%+3) |
|---|---|
| B-Type Thermocouple Temperature Accuracy (°C) | ±1.4 |
| B-Type Thermocouple Temperature Range (°C) | 600~1800 |
| B-Type Thermocouple Temperature Range (°F) | 1112~3272 |
| Cu100-Type RTDs Temperature Accuracy (°C) | ±(0.05%+0.6) |
| Cu100-Type RTDs Temperature Range (°C) | -50~150 |
| Cu100-Type RTDs Temperature Range (°F) | -58~302 |
| Cu50-Type RTDs Temperature Accuracy (°C) | ±(0.05%+0.6) |
| Cu50-Type RTDs Temperature Range (°C) | -50~150 |
| Cu50-Type RTDs Temperature Range (°F) | -58~302 |
| DC (V) | 100.000m, 1000.0m |
| Display (mm) | 63x40 |
| E-Type Thermocouple Temperature Accuracy (°C) | ±0.7 |
| E-Type Thermocouple Temperature Range (°C) | -200~950 |
| E-Type Thermocouple Temperature Range (°F) | -328~1742 |
| J-Type Thermocouple Temperature Accuracy (°C) | ±0.7 |
| J-Type Thermocouple Temperature Range (°C) | -20~1200 |
| J-Type Thermocouple Temperature Range (°F) | -328~2192 |
| K-Type Thermocouple Temperature Accuracy (°C) | ±1 |
| K-Type Thermocouple Temperature Range (°C) | -200~1370 |
| K-Type Thermocouple Temperature Range (°F) | -328~2498 |
| N-Type Thermocouple Temperature Accuracy (°C) | ±0.9 |
| N-Type Thermocouple Temperature Range (°C) | -200~0~1300 |
| N-Type Thermocouple Temperature Range (°F) | -328~2372 |
| Power | 9V Battery (6F22) |
| Product Color | Red and grey |
| Pt10-Type RTDs Temperature Accuracy (°C) | ±(0.5%+6) |
| Pt10-Type RTDs Temperature Range (°C) | -200~850 |
| Pt10-Type RTDs Temperature Range (°F) | -328~1562 |
| Pt100-Type RTDs Temperature Accuracy (°C) | ±(0.05%+0.6) |
| Pt100-Type RTDs Temperature Range (°C) | -200~850 |
| Pt100-Type RTDs Temperature Range (°F) | -328~1562 |
| R-Type Thermocouple Temperature Accuracy (°C) | ±1.4 |
| R-Type Thermocouple Temperature Range (°C) | -20~1750 |
| R-Type Thermocouple Temperature Range (°F) | -4~3182 |
| Ramp Functions | Source functions: Voltage, resistance, temperature, Ramps: Slow ramp, fast ramp, 25% step-ramp |
| Resistance (ohm) | 500.0, 5000 |
| Resistance Accuracy | 500.0/ 5000 : ±(0.05%+2) |
| S-Type Thermocouple Temperature Accuracy (°C) | ±1.5 |
| S-Type Thermocouple Temperature Range (°C) | -20~1750 |
| S-Type Thermocouple Temperature Range (°F) | -4~3182 |
| Step Functions | Source functions: Voltage, resistance, temperature, Steps: 25% of range, 100% of range |
| T-Type Thermocouple Temperature Accuracy (°C) | ±0.8 |
| T-Type Thermocouple Temperature Range (°C) | -200~400 |
| T-Type Thermocouple Temperature Range (°F) | -328~752 |
| Wre325-Type Thermocouple Temperature Accuracy (°C) | ±1.8 |
| Wre325-Type Thermocouple Temperature Range (°C) | 0~2000 |
| Wre325-Type Thermocouple Temperature Range (°F) | 32~3632 |
| Wre526-Type Thermocouple Temperature Accuracy (°C) | ±1.8 |
| Wre526-Type Thermocouple Temperature Range (°C) | 0~2300 |
| Wre526-Type Thermocouple Temperature Range (°F) | 32~4172 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Equipped with 10 thermocuple types, 4 RTD types, and voltage/resistance output function, UT701 is professional and convenient for users to calibrate and repair various temperature testers. Easy-to-operate keys, selectable steps and ramp outputs make operations efficient and accurate. It features LCD backlight, auto power off, bi-color injection case and 1m drop proof.
Feature
Features of UT701 Single Function Temperature CalibratorCertifications: CE, UKCA
- Up to 0.05% output accuracy
- 6-digit display
- Output functions: DC voltage, resistance, thermocouple, and thermal resistance
- 10 thermocouple scales
- 4 thermal resistance scales
- High precision automatic cold junction compensation for thermocouple outputs
- Manual stepping and automatic stepping and ramping
- Stores and recalls setups
Use
Temperature measurement, Voltage measurementUlasan Produk
