UNI-T Multifunction Temperature Process Calibrator
#Grup produk P112430919
Spesifikasi
| Continuity Test | Yes |
|---|---|
| DC Voltage (V) | Measurement : 50m/500m/30, ±(0.02%+2); Source : 100m/1000m/10, ±(0.02%+10) |
| Display Count | 20000 |
| Operating Temperature (°C) | -10~55 |
| Power | 1.2V X 6 AA Rechargeable Battery |
| RTDs | Measurement : Pt100/Pt200/Pt500/Pt1000/Cu10/Cu50/Cu100/Pt100-392/Pt100-JIS/Ni120; Source : Pt100-385/Pt100-392/Pt100-JIS/Pt200-385/P500-385/Pt1000-385/Cu10/Cu50/Cu100/Ni120 |
| Resistance (ohm) | Measurement : 500/5000, ±(0.05%+10); Source : 400/4000, ±(0.05%+10) |
| Size (mm) | 195x95x58 |
| Thermocouple | Measurement : R,S,K,E,J,T,N,B,L,U; Source : R,S,K,E,J,T,N,B,L,U |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description

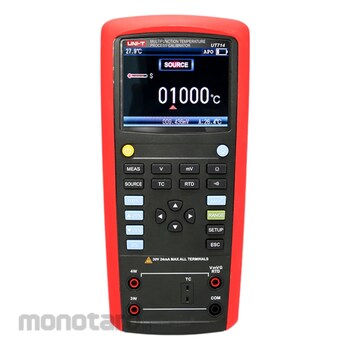

The UT714 is powerful temperature calibrator that sources and measures thermocouples, RTDs, voltage, and resistance. It can be used to test and calibrate diffrent types of temperature instruments. This device is suitable for testing input/output temperature terminals such as sensors and transmitters.
Feature
Features of UT714 Multifunction Temperature Process CalibratorCertifications: CE, UKCA
- Step/ramp functions
- Source and measure accuracy up to 0.02%
- Rechargeable battery
- Contrast adjustment
- Auto power off (Time adjustable)
- Stores and recalls setups
- USB communication
Use
RTDs measurement, Resistance measurementUlasan Produk
