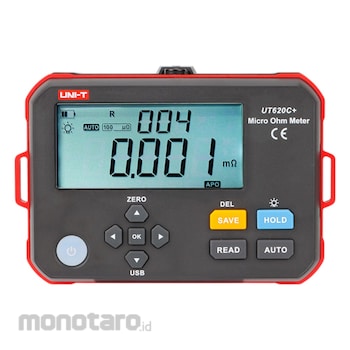

UNI-T Micro Ohm Meter
#Grup produk P112430779
Spesifikasi
| Automatic Power Off | 15 minutes if no operation |
|---|---|
| Backlight | Yes |
| Certificate | CE, RoHS |
| Dimensions (mm) | 161x117x68 |
| Display Type | segment LCD |
| Functions | Measuring the resistance of all kinds of wires, switches, connectors, contactors, fuses, coils, transformer windings, metal riveting, and so on. |
| IP Rating | IP54 |
| Input Protection | ≤36V AC/DC |
| Low Battery Indication | Yes |
| Measurement Method | Four-wire method |
| Measuring Speed | about 2times/s |
| Open Circuit Voltage (V) | ≤4.2V |
| Power Consumption | measurement power: ≤8W |
| Power Supply | DC 3.7V 3200mAh lithium battery |
| Product Color | Black + Red |
| Resistance Accuracy | 100.1k~300.0k/3uA : 100 ; 10.01k~100.00k/3uA : 10 ; 1.001k~10.000k/10uA : 1 ; 100.1~1000.0/100uA : 0.1 ; 10.01~100.00/1mA : 0.01 ; 1.001~10.000/10mA : 0.001 ; 100.1m~1000.00m/100mA : 0.1m ; 0.001m~100.00m/1A : 0.01/0.001m |
| Resistance Range (ohm) | 100.1k~300.0k/3uA ; 10.01k~100.00k/3uA ; 1.001k~10.000k/10uA ; 100.1~1000.0/100uA ; 10.01~100.00/1mA ; 1.001~10.000/10mA ; 100.1m~1000.00m/100mA ; 0.001m~100.00m/1A ; |
| Storage | 500 set |
| Test Current (A) | ≤1 |
| USB interface | Type C |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
UT620C+ can measure a wide range of resistance values with high precision. It is a highly accurate portable resistance meter capable of measuring resistance levels from micro-ohm to mega-ohm. It is ideal for testing and maintenance of large equipment, such as measuring winding and welding resistance of large motors and stators for hybrid and electric vehicles. Widely used in telecommunications, power distribution systems, new energy vehicles, petrochemicals, industrial plant grounding systems, etc.
Feature
Features of UT620C+ Micro-ohmmeterCertifications: CE, RoHS
1. Micro-ohm level measurement, resistance measurement range: 0.001mΩ to 300.0KΩ
2. Resolution up to 1μΩ
3. The accuracy can reach ±0.1%FS
4. The measurement current ≤ 1A
5. 500 groups of data storage
6. Large LCD display
7. Automatic shutdown, longer standby time
8. The lithium battery can be used repeatedly
9. Compact design, easy to carry and operate
