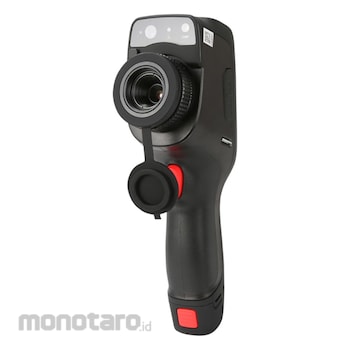

UTi192M
Intelligent Pro-grade Thermal Camera
UTi192M inherits the classic functions of high-end infrared thermal imagers, with simple appearance and ergonomic design. The touch-display screen menu navigation interface is convenient for users to operate easily. There are professional tips for each step, so that first-time users can also become experts! UTi192M is equipped with a high intensity light, so that you can easily take clear visible light and infrared contrast pictures, easier to find abnormalities. We also offer a wide range of high quality optional infrared lenses with higher temperature (1500°C ) for different applications.
UNI-T Intelligent Pro-grade Thermal Camera
#Grup produk P112430715
Spesifikasi
| Accuracy (°C) | ±2 or ±2% whichever is greater |
|---|---|
| Battery | Detachable Li-ion battery (7.2V 2300mAh) |
| Battery operating time | ≥ 4 hours |
| Certificates | CE,FCC,RoHS |
| Color Palettes | 8 (White hot, Fulgurite, Ironbow, Hot iron, Medical, Arctic, Rainbow 1, Rainbow 2) |
| Digital Camera Resolution | 5MP |
| Digital Zoom | 1.0~4x continuous |
| Display | 4inch LCD Touch (800×480) |
| Emissivity | 0.01~1.00 adjustable (0.95 default) |
| Field of View (°) | 37.8×28.8 |
| Focus | Manual |
| Frame Rate (Hz) | ≤25 |
| High/Low Temperature Alarm | Icon,LED flashlight,Buzzer |
| IFOV (spatial resolution) | 3.45mrad |
| IP Rating | IP54 |
| Image Modes | Thermal,Visual image,Fusion,PIP |
| Image/video Storage Format | Picture: JPEG; Video: irgd |
| Infrared Resolution (pixels) | 192×144 |
| Isotherm | Above, Below |
| Laser Pointer | Yes |
| On Screen Analyzer | 5 Points/2 Lines/5 Rectangles/5 Circles |
| PC Software Analysis | PC |
| Size (mm) | 274×106×78 |
| Spectral Range (µm) | 7.5~14 |
| Storage | 16G Internal, 16GB SD card |
| Temperature Measurement Range (°C) | -20~650 (standard lens), 650~1500 (optional lens) |
| Thermal Sensitivity (NETD) (mK) | ≤50 |
| USB | HDMI,Micro USB |
| Video Recording | Yes |
| Voice Recording | Yes |
| WIFI and Bluetooth | Yes / Yes |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
Features :4” touch display screen (800×480 Pixels)
IR resolution: 192×144
Temperature measurement range: -20°C to 650°C , external lens up to 1500°C / -4°F to 1202 °F, external lens up to 2732°F
Interchangeable lens (Optional Telephoto lens / High Temp lens)
Manual focus
Auto alarm for high/low temperature
Auto tracking for hot spot/cold spot
On display screen analyzer: 5 Points/2 Lines/5 Rectangles/5 Circles
Image capture
Video recording
Voice recording
Bluetooth connection
Digital camera resolution: 5MP
Digital zoom: 1.1~4x (continuous zoom)
Image modes: Thermal,Visual image,Fusion,PIP
Color palettes: 8 (White hot, Fulgurite, Ironbow, Hot iron, Medical, Arctic, Rainbow 1, Rainbow 2)
Isotherm : 2(Above, Below)
LED flashlight
Laser pointer
Wi-Fi connection through Mobile APP
PC software analysis and real-time image projection
Replaceable battery pack
IP54
Use
Applications of UTi192MSolar panel inspection, electric power tower inspection,electricity facilities inspection, mechanical equipment inspection, heating equipment inspection, building&HVAC inspection and other wide range applications: petro chemical,metallurgy,industry etc.
