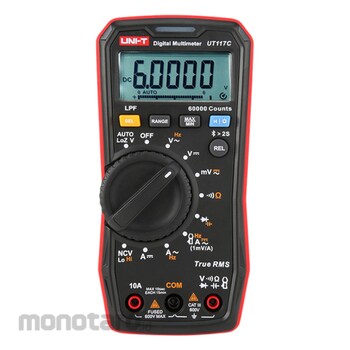

UT117C is a high-precision true RMS multimeter, which has AC/DC 600V voltage measurement, 10A AC/DC current measurement, LPF measurement, Bluetooth function, etc.
The main features are fast response, high precision, small size, and easy operation, and product accuracy can still be guaranteed after a 2-meter drop. It is a good tool for electronic electricians.
UNI-T High-precision True RMS Digital Multimeter
#Grup produk P112430654
Spesifikasi
| AC Current (A) | 6.0000/10.000, ±(1.5%+30) |
|---|---|
| AC Voltage | 600.00mV/6.0000V/60.000V/600.00V, ±(1%+30) |
| Audiable & Visuable indication | Yes |
| Auto Power OFF | Around 15 minutes |
| Bluetooth | Yes |
| Capacitance | 1000nF/10.00uF/100.0uF, ±(1.9%+5) |
| Capacitance (uF) | 1000/10000, ±(2.5%+5) |
| Continuity & Diode | Yes |
| DC Current (A) | 6.0000/10.000, ±(0.5%+10) |
| DC Voltage | 600.00mV/6.0000V/60.000V/600.00V, ±(0.3%+10) |
| Data Hold | Yes |
| Dimensions (mm) | 169x 84x 48.8 |
| Display Count | 60000 |
| Drop Test (m) | 2 |
| External Current Clamp | Ratio: 1mV/A |
| Frequency (Hz) | 99.99/999.9/9.999K/50.00K, ±(0.01%+3) |
| High voltage warning | Yes |
| LCD Backlight | Auto power off after 5 minutes |
| LoZ ACV Accuracy | ±(1%+3) |
| LoZ ACV Range (V) | 600 |
| Low Battery Indication | Yes |
| Low Pass Filter Accuracy (LPF ACV) | ±(2%+3) |
| Low Pass Filter Voltage (LPF ACV) (V) | 600 |
| Manual/Auto Range | Yes |
| Max/Min | Yes |
| NCV | Yes |
| Overvoltage Category | CATIII 600V |
| Power Supply | 1.5V AAA x 3 |
| Product Color | Red + Grey |
| Relative Mode | Yes |
| Resistance (ohm) | 600.00~6.0000M, ±(0.5%+5); 40.000M, ±(3%+5) |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
Features of UT117C High-precision True RMS Digital MultimeterCertificates: CE, UKCA, cETLus
- High-precision: 60000 counts
- True RMS measurement
- AC/DC current: 10A
- AC/DC voltage: 600V
- LoZ, LPF & Auto Volt function
- Audible & Visual Warning
- Bluetooth app supported
- External current clamp supported
- Compact design, easy & convenient operation
- Drop test: 2m
- Magnetic hanger supported (optional)
- Overvoltage category: CAT III 600 V
Use
AC voltage measurement, External current clamp supported, AC voltage (LPF function), Resistance measurementUlasan Produk
