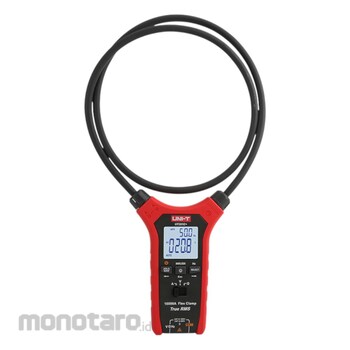

The UT281E+ True RMS Flexible Clamp Meter is a high – precision and multi – functional electrical measuring tool. It offers a current measurement range up to 10,000A, comes with a 1.1m – long flexible coil, has an overload protection circuit across the full range, and features a unique appearance design, making it suitable for a variety of application scenarios.
It is widely applied in fields such as smelting, communication, manufacturing, petroleum, power, electrical engineering, and photovoltaic stations.
UNI-T Flex Clamp
#Grup produk P112430575
Spesifikasi
| Accuracy (ACV) | ±(1.2%+3) |
|---|---|
| Accuracy (DCV) | ±(1.2%+3) |
| Backlight | Yes |
| Certificates | CE/ETL/ROHS |
| Coil Diameter (mm) | 8 |
| Coil Inner Diameter (Φmm) | 15.92 |
| Current AC (A) | 60.0/600.0/6000/10000 |
| Data Hold | Yes |
| Dimensions (mm) | 145x58x33 |
| Display Count | 6000 |
| Frequency (Hz) | 10.00~30.00k: ±(0.5%+3) |
| Frequency Response (Hz) | 45~400 |
| Inrush Current (A) | 6000 |
| LCD Dimensions (mm) | 35x32 |
| Length Flexible Coil (inch) | 43.3 |
| Length Flexible Coil (mm) | 1100 |
| Overvoltage Rating | CAT III 1000V & CAT IV 600V |
| Power Supply | 1.5V AAA×3 |
| Resistance (ohm) | 60.00M: ±(1.0%+5) |
| Resolution Accuracy | 0.01A; ±(2%+5) |
| Sampling Rate (time/s) | 3 |
| True RMS | Yes |
| Voltage (ACV) | 1000 |
| Voltage (DC) | 1000 |
| Warning indication | High voltage & OL |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
Features of UT281E+ Flex clampCertifications: CE, cETLus, RoHS
1. 6000 count true RMS measurement
2. Current range of 10000A (auto ranging for each level)
3. 6000A inrush current measurement
4. A flexible coil with a length of 1100mm (about 43 inches)
5. Frequency response: 45Hz – 500Hz
6. AC/DC voltage test up to 1000V
7. Resistance: 60MΩ
8. LCD dual – display: AC V & Hz; ACA & Hz
9. Capable of withstanding an energy impact of up to 1000V (30KVA)
10. Alarm prompts; Safety standards: IEC 61010 – 1
11. CAT III 1000V / CAT IV 600V
