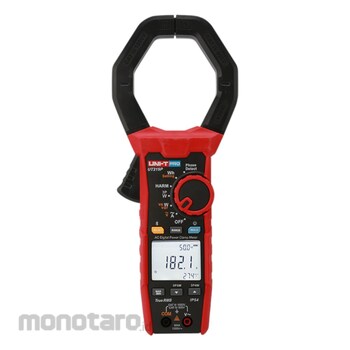

UT219P is an intelligent, handheld, and stable power and harmonics clamp meter, with the functions of a digital ammeter and power meter. It can measure harmonics, 3-phase unbalanced voltage, AC voltage, AC current, power, power factor, and more.
It is widely used in photovoltaic power stations, motor manufacturing, and power/harmonic measurement of electrical equipment and distribution cabinets in residential enterprises.
UNI-T AC Digital Power Clamp Meter
#Grup produk P112430238
Spesifikasi
| AC Current (A) | 1000, ±(1.5%+3) |
|---|---|
| AC Voltage (V) | 1000, ±(0.7%+3) |
| AC/DC PEAK Measurement | Yes |
| Auto Power OFF | Around 15 minutes |
| Bluetooth App | Yes |
| Certificate | CE, UKCA, cETLus |
| Data Hold | Yes |
| Display Count | 9999 |
| Display Mode | LCD screen, 4 kinds of results at the same time |
| Harmonic Measurement | 32 times |
| High Voltage Indication | Yes |
| High Voltage Overload Warning | Yes |
| Jaw Opening | 75 |
| Low Battery Indication | Yes |
| Max/Min | Yes |
| Overload Indication | Yes |
| Overvoltage Category | CAT III 1000V/CAT IV 600V |
| Phase Angle (°) | Range 15Hz to 40Hz : ±5, Range 40Hz to 70Hz : ±3, Range 70Hz to 1000Hz : ±5 (-180°~ 179.9°) |
| Phase Detection Voltage (V) | 80~1000, Positive and Negative |
| Power (3-Phase & 3-Wires) Accuracy (KW) | 1732KW, ±(0.7%+5) |
| Power (3-Phase & 4-Wires) Accuracy (KW) | 3000KW, ±(0.7%+5) |
| Power (Single Phase) Accuracy (KW) | 1000KW, ±(0.7%+5) |
| Power Factor | -1 ~ 1 based on the Accuracy of the Phase angle |
| Power Frequency (Hz) | 15 to 1000, ±(0.3%+3) |
| True RMS | Yes |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
Features of UT219P AC Digital Power Clamp MeterCertificates: CE, ETL, REACH, FCC
- 1000A AC current measurement
- 1000V AC voltage measurement
- AC and DC PEAK measurement
- Three-phase power measurement (up to 3000kW)
- Harmonic/THD/Power Factor/Phase Sequence Measurement
- Single Phase power measurement
- Large pliers head (up to 75mm diameter)
- True RMS measurement
- Bluetooth 5.0
- CAT III 1000V/CAT IV 600V
- IP54
